RUIJIE

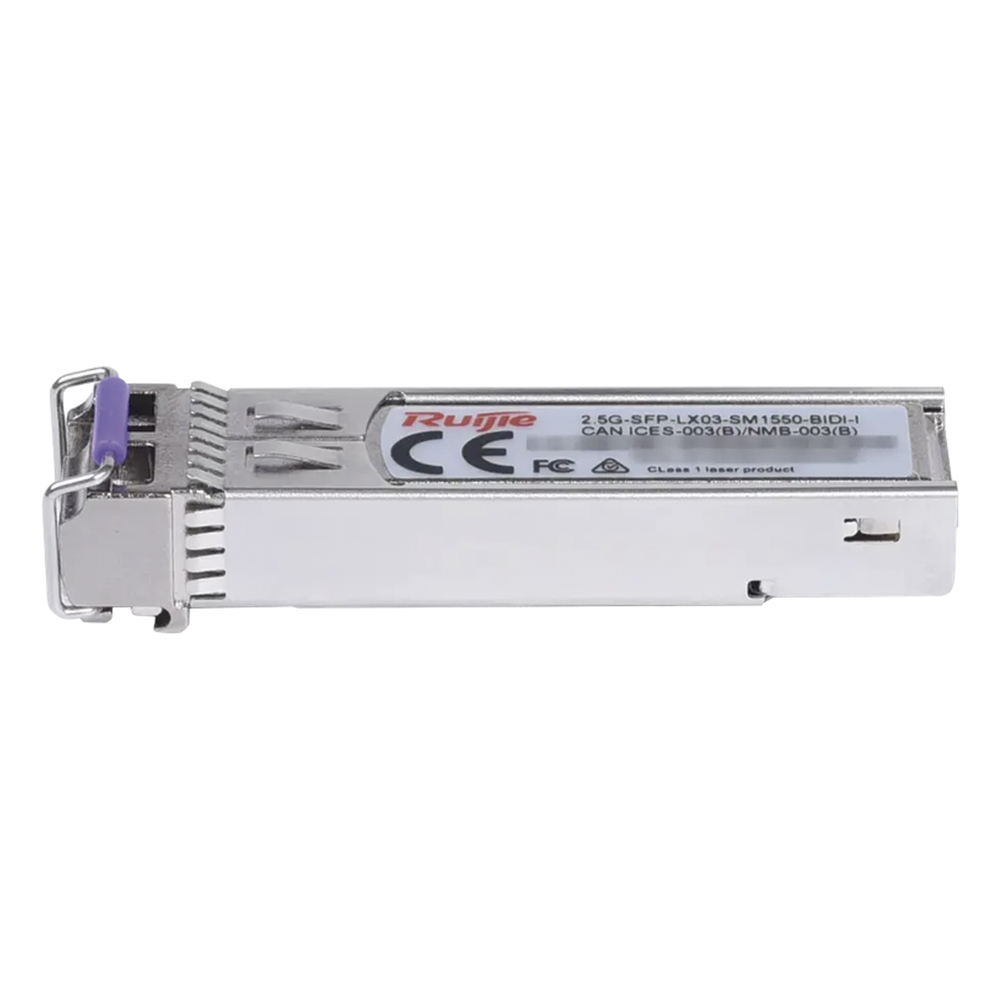

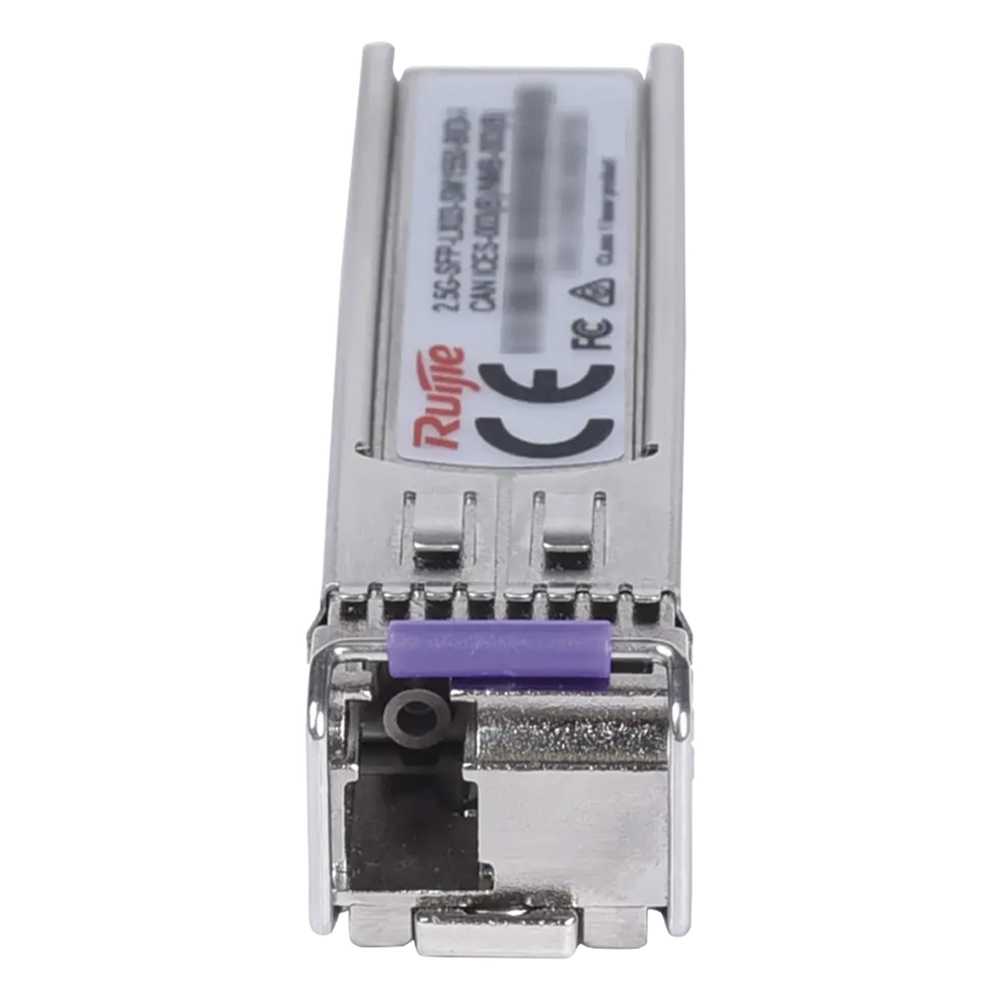

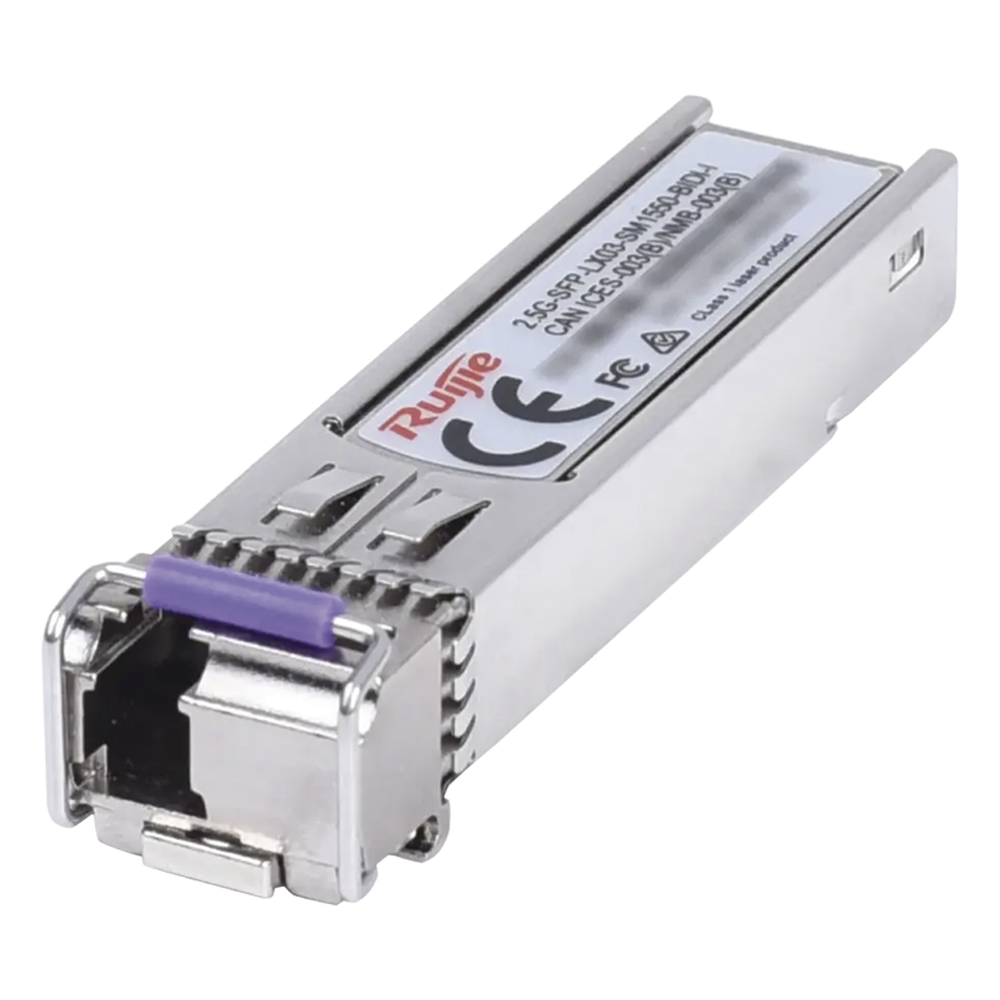

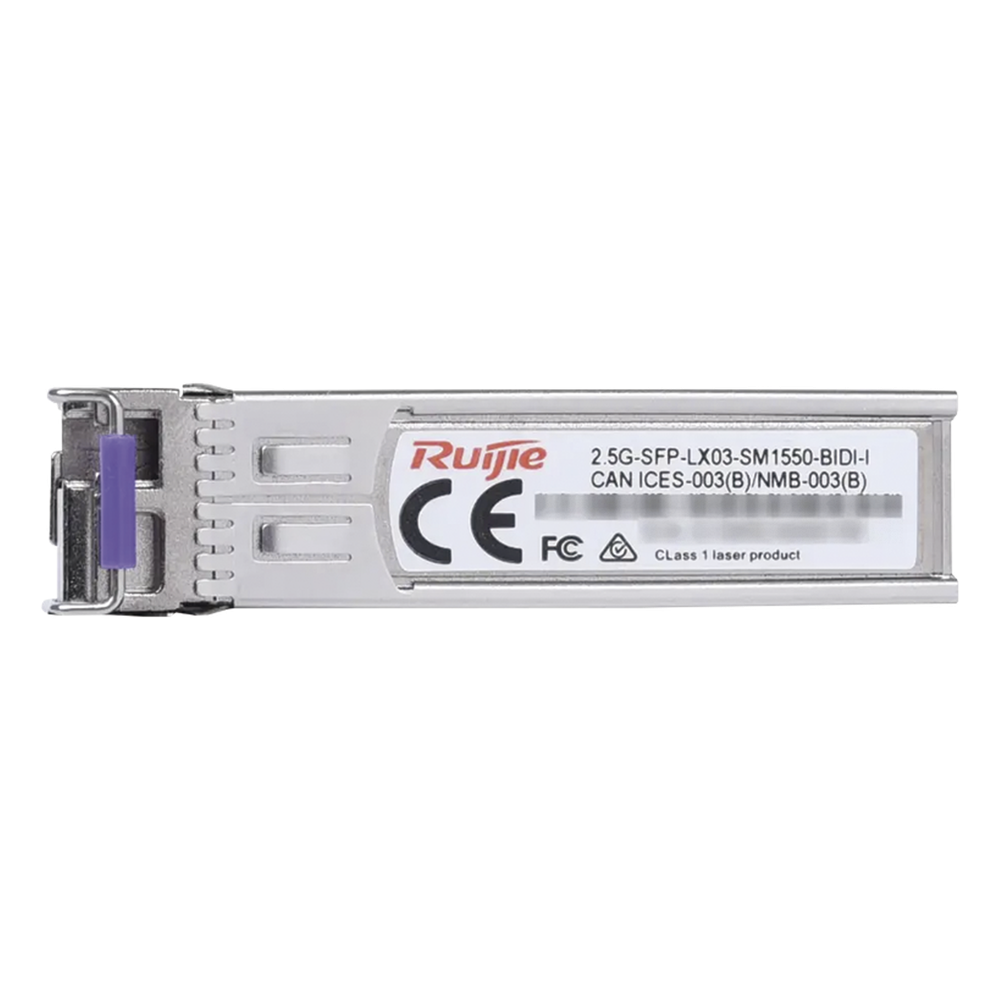

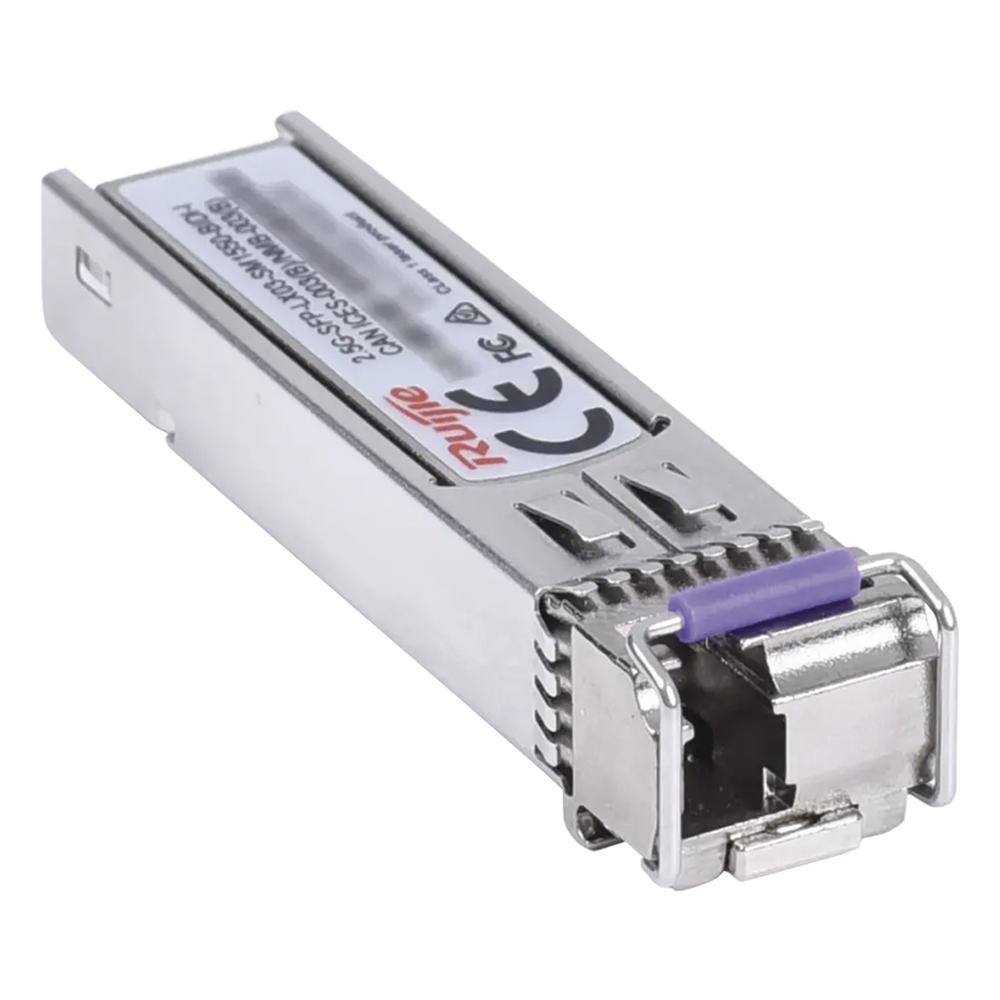

Transceptor Lado (B) un Hilo BiDi SFP 2.5Gb LC Monomodo Tx 1550nm / Rx 1310nm, hasta 3km

Transceptor Lado (B) un Hilo BiDi SFP 2.5Gb LC Monomodo Tx 1550nm / Rx 1310nm, hasta 3km

$ 2,693.17
$ 2,693.17
Oferta Agotado
Impuesto incluido.

El 2.5G-SFP-LX03-SM1550-BIDI-I está alineado con las especificaciones ópticas IEEE 2.5GBASE-LX y admite una longitud de enlace de hasta 3 kilómetros a través de un SMF con un conector BIDI LC. Adopta el factor de forma SFP y opera a una longitud de onda de 1550 nm. El transceptor cumple con los estándares SFF-8431, SFF-8472 y RoHS.

Características principales:
  • Velocidad 2.5 Gbps (solo es posible la negociación a 2.5G)
  • Hasta 3 Km
  • Monomodo LC Bi-di
  • Tx: 1550nm, Rx: 1310nm
  • Garantía de 3 años
  • Se requiere del modulo 2.5G-SFP-LX03-SM1310-BIDI-I (No incluido)
Contenido del Paquete:
  • 1pz modulo 2.5G-SFP-LX03-SM1550-BIDI-I
Especificaciones
Model
2.5G-SFP-LX03-SM1311-BIDI-I
2.5G-SFP-LX03-SM1551-BIDI-I
Data rate
3.125 Gbps
Form factor
SFP
Connector type
BIDI LC
Cable type
SMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
FB
DFB
Receiver type
PIN
Reach
3 km (9,842.52 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1 W
Transmitter Optical Parameters
Wavelength
1310 nm TX
1550 nm RX
1550 nm TX
1310 nm RX
Max. transmit power (AVG)
–3 dBm
Min. transmit power (AVG)
–9 dBm
Min. extinction ratio
≥ 6.5 dB
Receiver Optical Parameters
Receive sensitivity (OMA)
< –16 dBm
Overload optical power (AVG)
–3 dBm
Environment and Reliability
Operating temperature
–40ºC to +85ºC (–40ºF to +185ºF)
Operating humidity
10% RH to 90% RH
Storage temperature
–40ºC to +85ºC (–40ºF to +185ºF)
Storage humidity
10% RH to 90% RH
Dimensions and Weight
Dimensions
(W x D x H)
56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.51 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
Ver todos los detalles
