TP-LINK

Punto de Acceso Wi-Fi 7 Exterior Tri-Banda / Omnidireccional IP68 / 11 Gbps (US) / 2.4G+5G+6G con AFC / 2.5G PoE+ / Cobertura 300 m² (3,200 ft²) / Gestión Omada SDN / GPS

Punto de Acceso Wi-Fi 7 Exterior Tri-Banda / Omnidireccional IP68 / 11 Gbps (US) / 2.4G+5G+6G con AFC / 2.5G PoE+ / Cobertura 300 m² (3,200 ft²) / Gestión Omada SDN / GPS

Precio habitual $ 10,207.05
Precio habitual Precio de oferta $ 10,207.05
Oferta Agotado
Impuesto incluido.

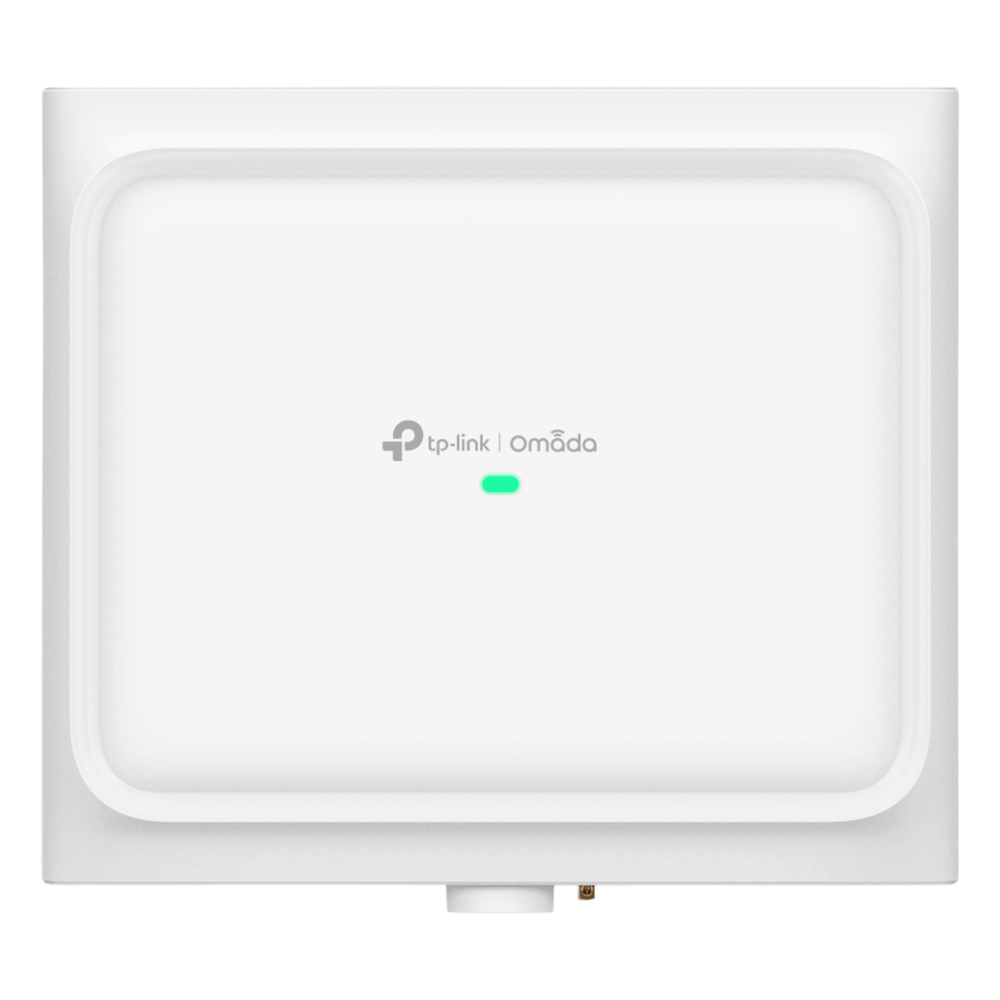

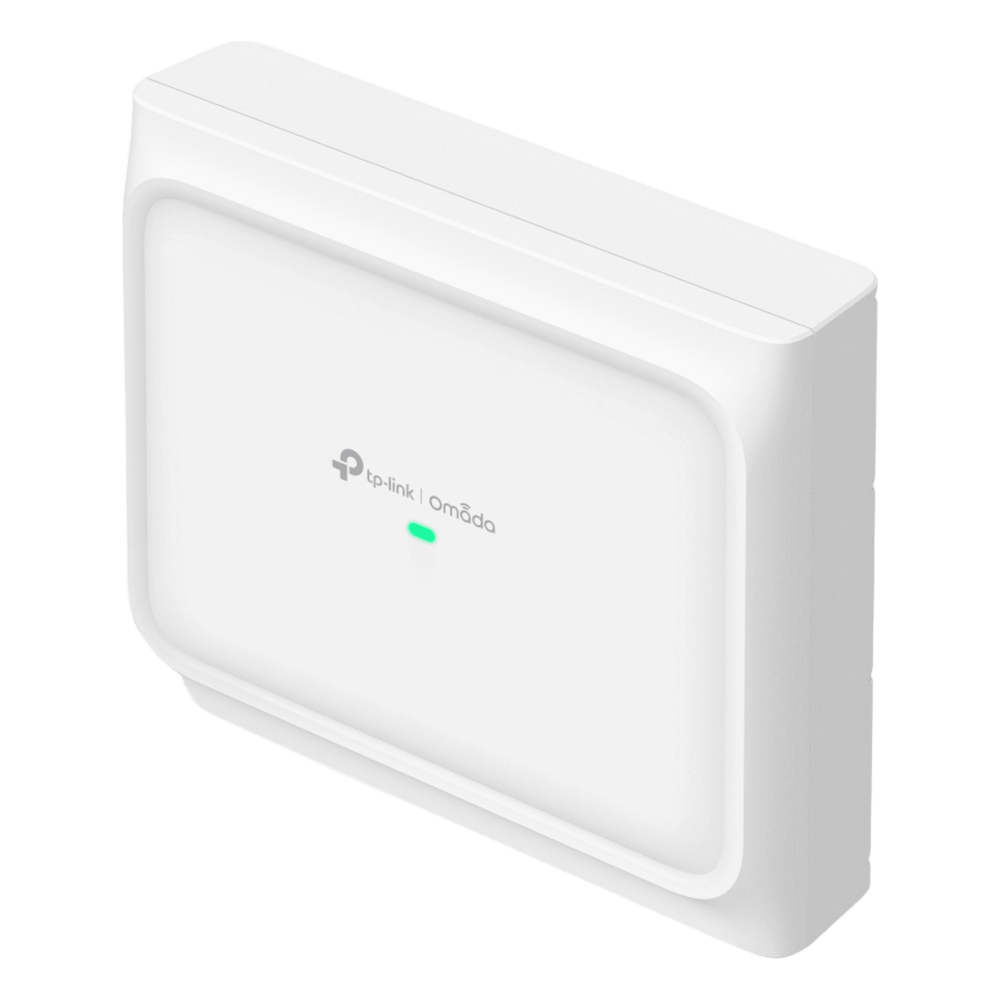

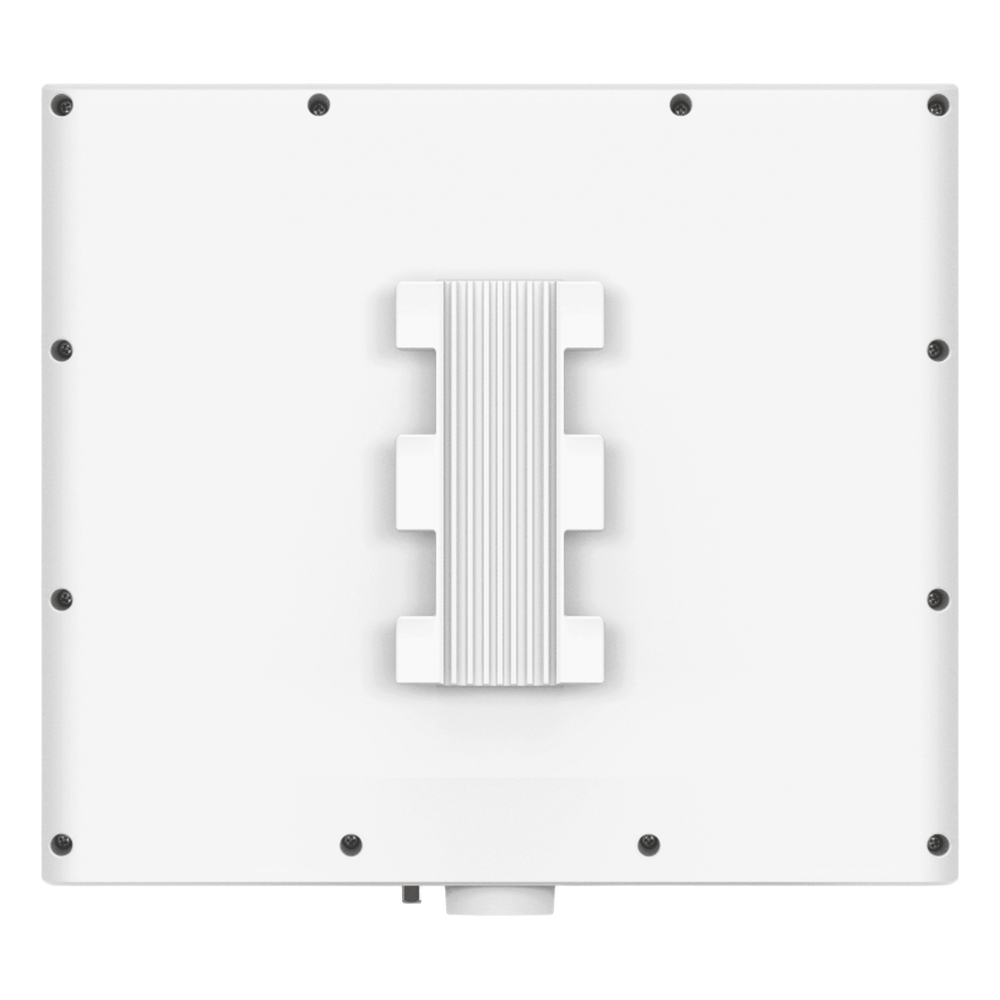

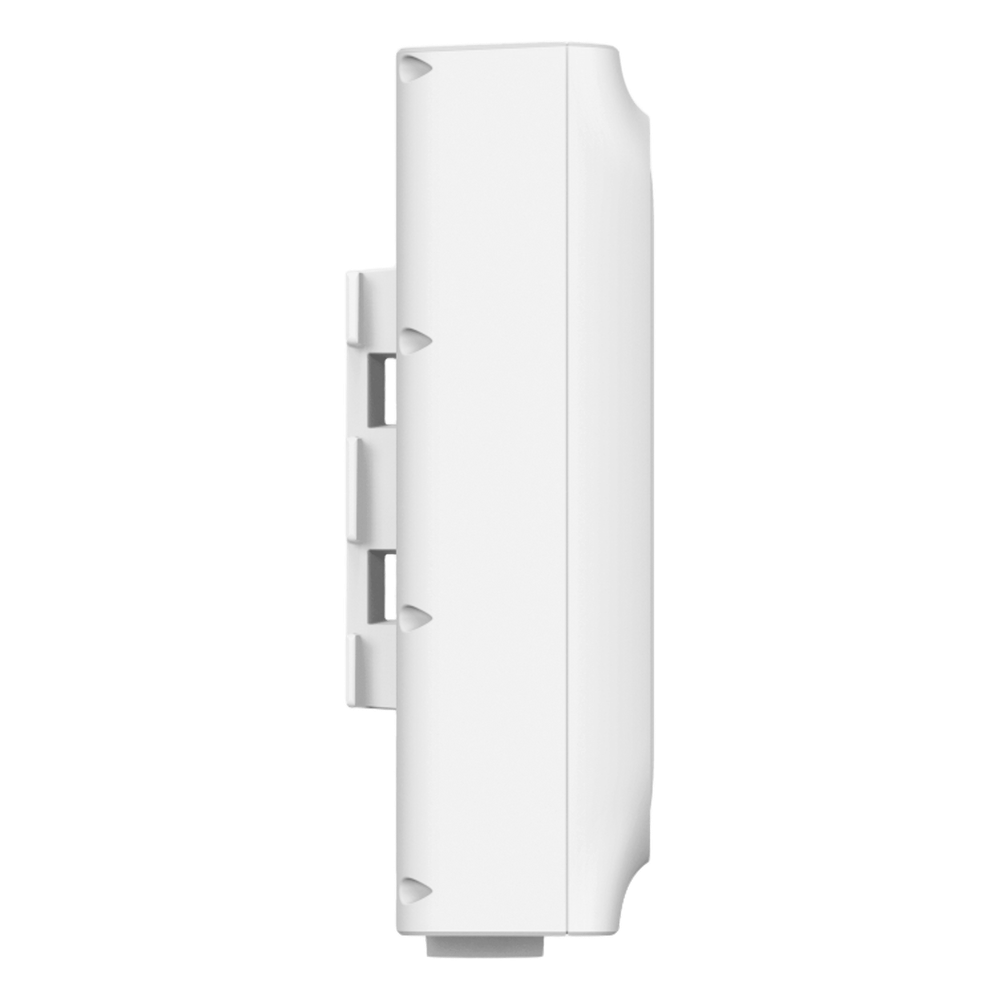

Omada modelo: EAP772-Outdoor

El EAP772-Outdoor es el primer punto de acceso exterior tri-banda de seis flujos omnidireccional Wi-Fi 7 de Omada, diseñado específicamente para entornos exteriores exigentes. Con su banda de 6 GHz desbloqueada mediante AFC (Automatic Frequency Coordination), este access point ofrece cobertura tri-banda omnidireccional real con un alcance recomendado de 300 m² (3,200 ft²). Su diseño IP68, el estándar más alto de la industria para resistencia al polvo y agua, garantiza operación confiable en condiciones climáticas extremas desde -40°C hasta +70°C. Equipado con un puerto 2.5G PoE+ para alto ancho de banda y antenas de 2.4 GHz de polarización dual para mejor rendimiento anti-interferencias, es ideal para hoteles, parques empresariales, patios, granjas y edificios comerciales exteriores. La integración con el ecosistema Omada SDN permite gestión centralizada, mesh, roaming seamless y visualización GPS de dispositivos.

Características Generales

  • Tipo: Punto de Acceso Wi-Fi 7 Exterior Tri-Banda
  • Bandas: 2.4 GHz + 5 GHz + 6 GHz con AFC
  • Flujos Espaciales: 6 flujos (2×2 por banda)
  • Velocidad Máxima: 11 Gbps (US)
  • Cobertura: 300 m² (3,200 ft²) omnidireccional
  • Protección: IP68 (sumergible +30 min a 1.5 m)
  • Temperatura: -40°C a +70°C (-40°F a +158°F)
  • Dispositivos: 380+ clientes simultáneos
  • Gestor: Omada SDN con GPS Map
Desempeño Wireless
  • Estándares: IEEE 802.11a/b/g/n/ac/ax/be
  • 2.4 GHz: 688 Mbps (EHT40)
  • 5 GHz: 4324 Mbps (EHT240)
  • 6 GHz: 5765 Mbps (EHT320)
  • Modulación: 4096-QAM, 1024-QAM, 256-QAM
  • MLO: 2.4G+5G, 2.4G+6G, 5G+6G, 2.4G+5G+6G
  • MU-MIMO: 2×2 Uplink/Downlink por banda
  • OFDMA: Uplink/Downlink
  • Multi-RU: Sí con Preamble Puncturing

*AFC disponible varía por región/país

Antenas y Conectividad
  • 2.4 GHz: 2×4 dBi internal omnidirectional
  • 5 GHz: 2×6 dBi internal omnidirectional
  • 6 GHz: 2×6 dBi internal omnidirectional
  • Bluetooth: 1×3 dBi BLE 5.2
  • GNSS: 1×3 dBi GPS, Galileo, GLONASS, BDS

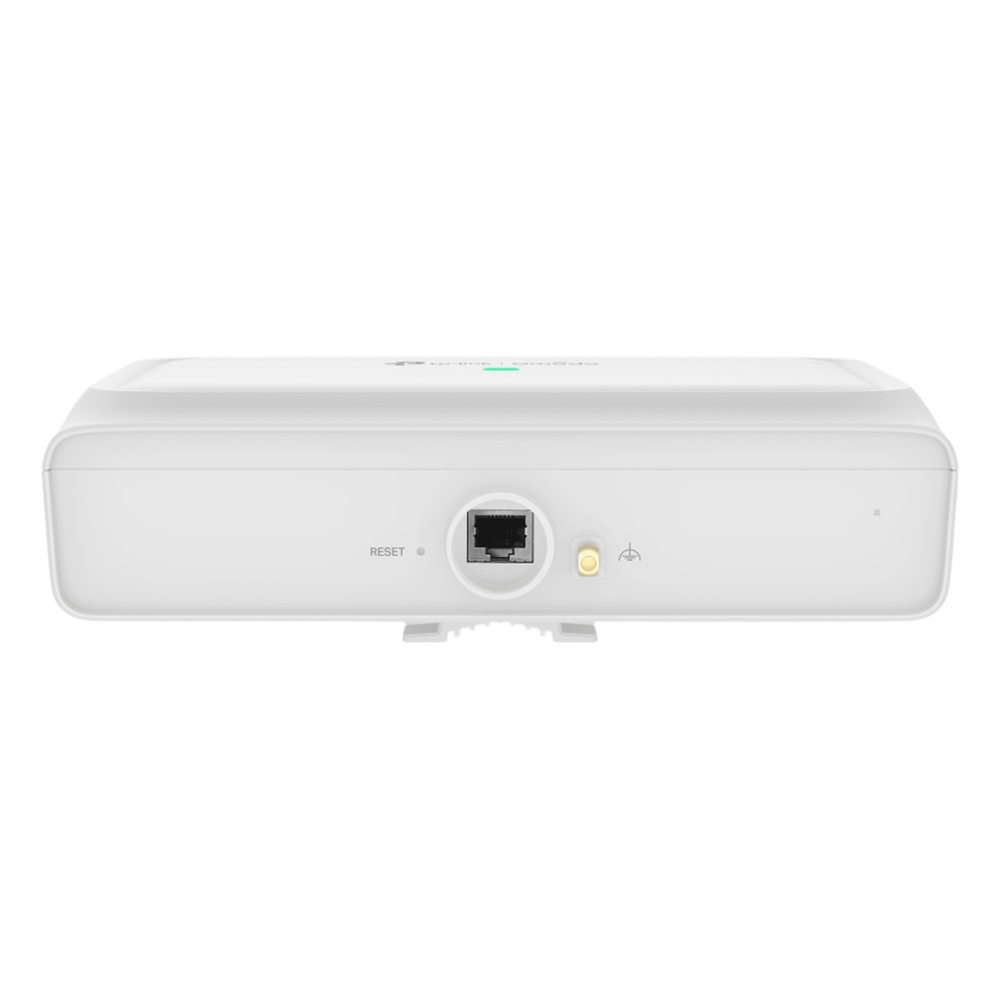

  • Puertos: 1×2.5G PoE+ RJ45, 1×Terminal Ground
  • Botón: Reset (factory restore >5s)
  • LED: Multi-color system status
Software y Gestión
  • BSSIDs: 24 máximo (8 por banda)
  • Clientes: 380+ asociados
  • Guest Network:
  • ACS: Automatic Channel Selection
  • Band Steering:
  • Roaming: 802.11k/v/r, AI Roaming
  • Seguridad: WPA3 Personal/Enterprise
  • VLAN: SSID, Dinámica, Administración
  • QoS: WMM, DSCP, U-APSD
  • Captive Portal: Hotspot, RADIUS, SMS
  • Gestor: Omada Controller ≥5.15.24
  • App: Omada App ≥4.20
  • Standalone:
Físicas y Eléctricas
  • Alimentación: 802.3at PoE+ (42.5-57V, 0.6A)
  • Consumo: 23W (operación), 8W (idle)
  • Dimensiones: 230×207.5×69.7 mm (9.06×8.17×2.74 in)
  • Peso: 1.41 kg (3.11 lbs) unidad principal
  • Temp. Operación: -40°C a +70°C
  • Humedad: 10% a 90% no condensante
  • Altitud: hasta 2000 m (6561 ft)
  • Protección: IP68, Clase 16 Windproof
  • Surge: ±6 kV puertos Ethernet
  • ESD: ±8 kV aire, ±4 kV contacto
Contenido del Paquete
  • EAP772-Outdoor (1 unidad)
  • Kit a prueba de agua (1 unidad)
  • Kit de montaje (1 unidad)
  • Guía de instalación (1 unidad)
  • Soporte de montaje
  • Abrazaderas para mangueras
  • Anclajes de pared de plástico
  • Tornillos autorroscantes
  • Espiral de cobertura
  • Brida
  • Sello Ø5/Ø6
  • Junta tórica
  • Tornillo

Documentación
