POLYPHASER

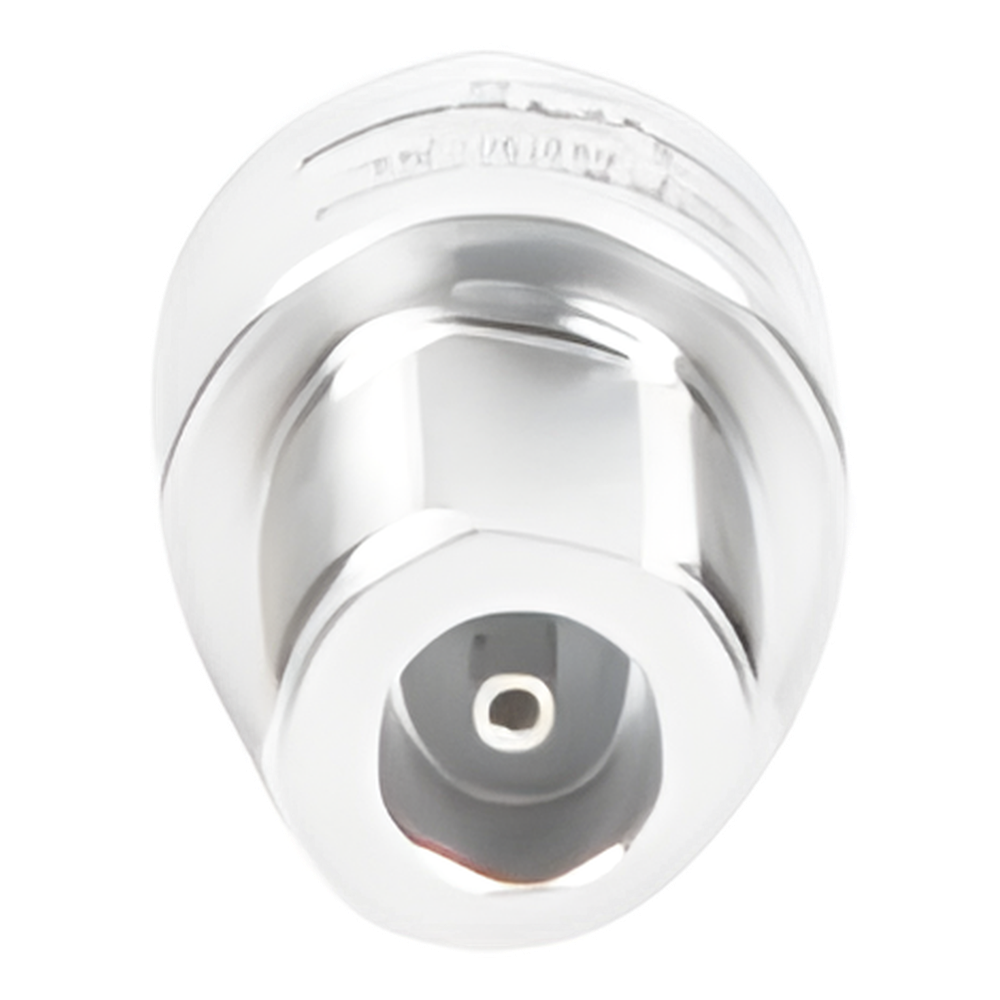

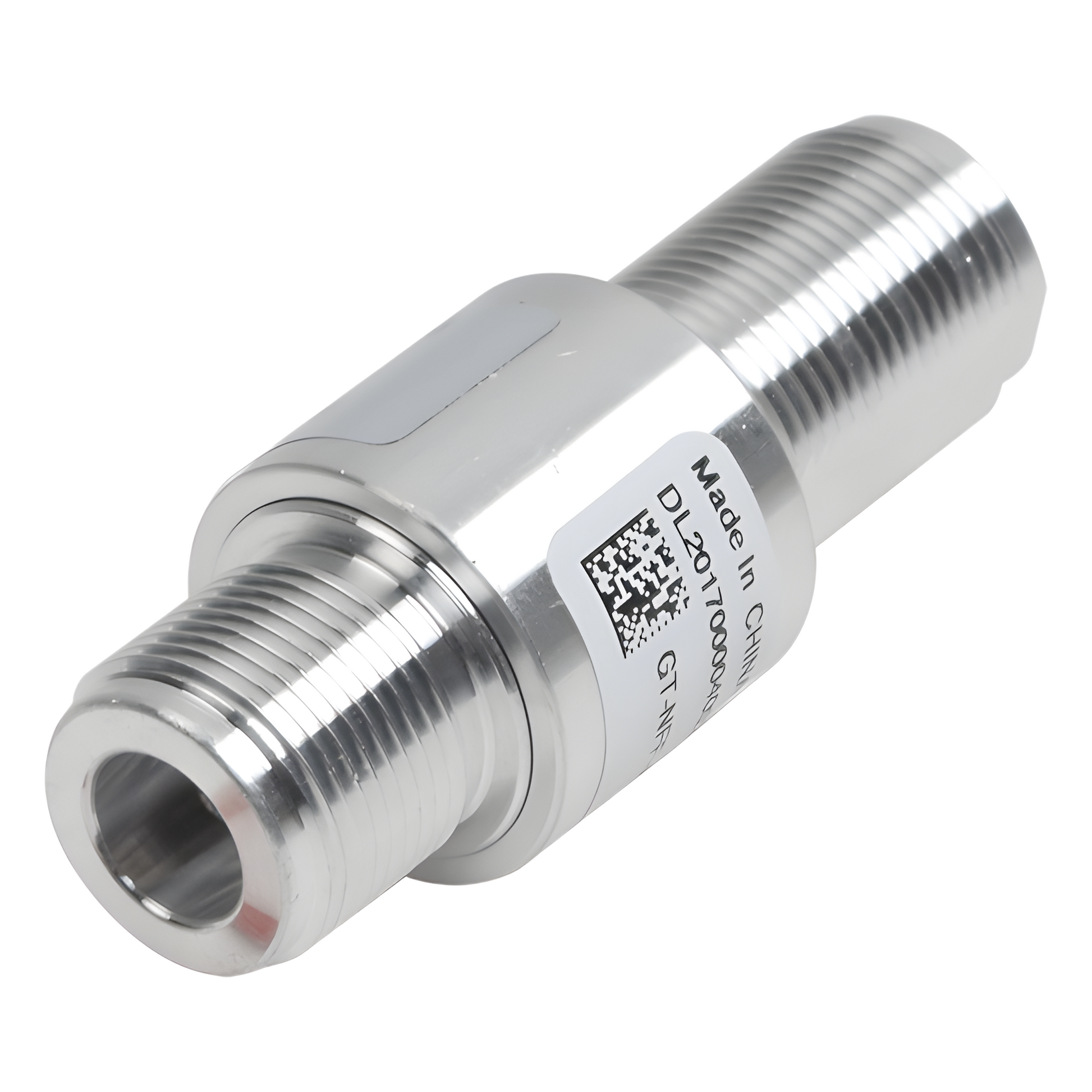

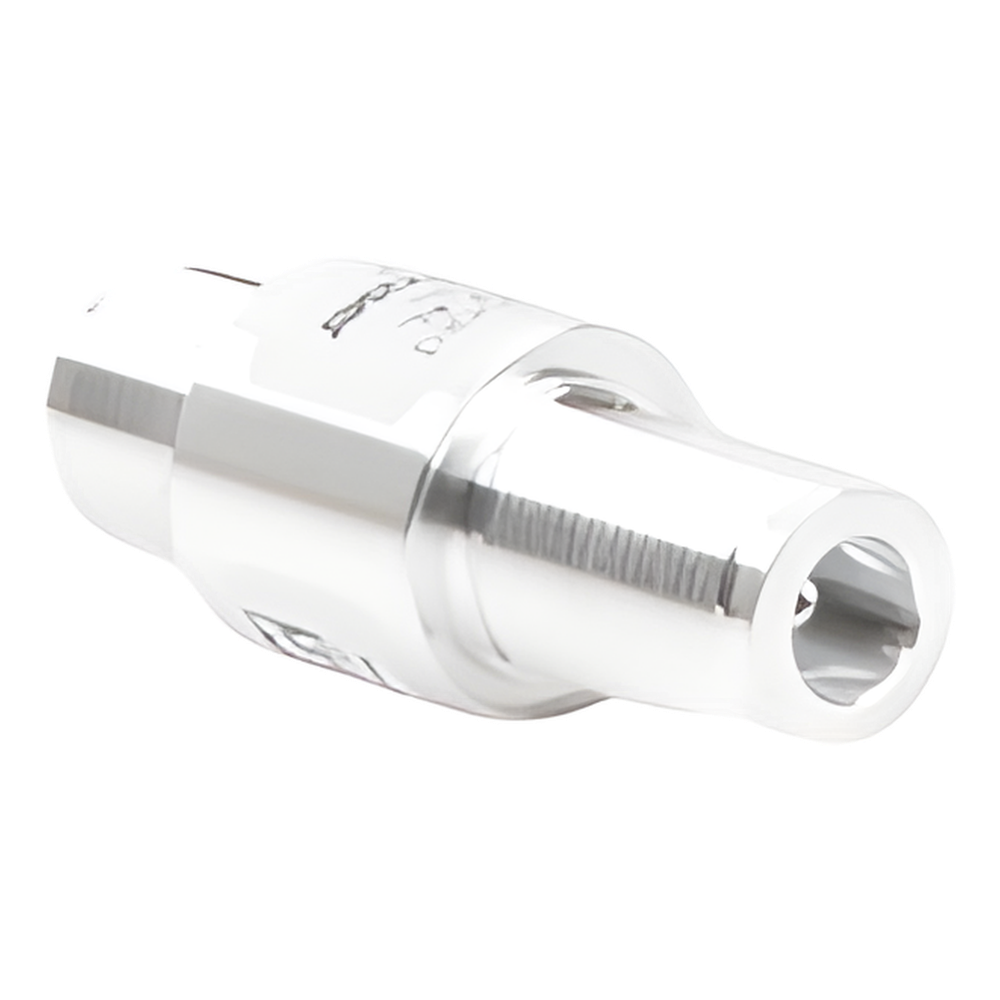

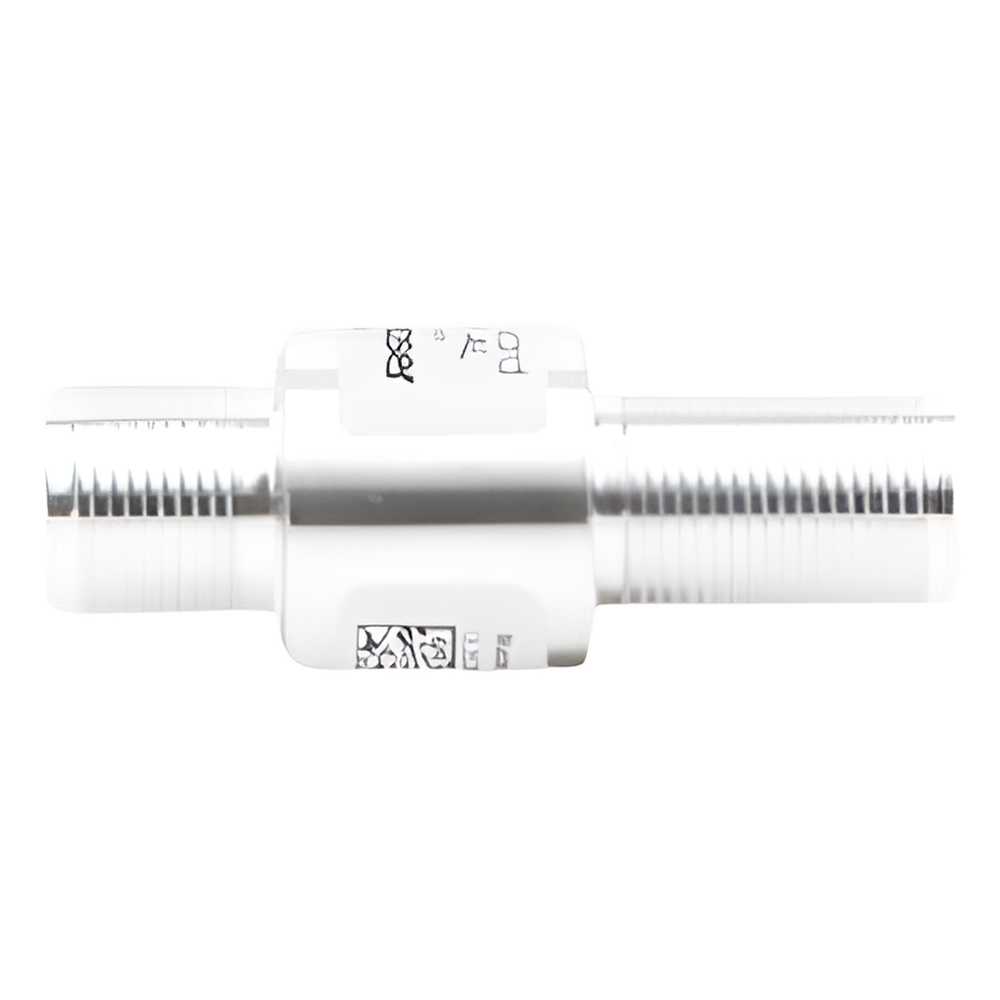

Protector Coaxial RF Tubo de Gas / DC-7 GHz / 90W / Conectores N Hembra / Bidireccional / Aluminio
Protector Coaxial RF Tubo de Gas / DC-7 GHz / 90W / Conectores N Hembra / Bidireccional / Aluminio
No se pudo cargar la disponibilidad de retiro
Protección RF de tubo de gas contra descargas atmosfericas con excelente VWSR y caracteristicas de rendimiento RF superiores para operación de equipos entre DC y 7 GHz con hasta 90 W de potencia con configuración de conectores N hembra bidireccionales.
Características
* Construcción en aluminio
* Kit de hardware incluído
* A prueba de cuestiones climatologicas en instalación
Especificaciones
- Tipo: Pasa DC
- Tipo de montaje: Mampara (Bulkhead)
- Estandares: CE Compliant, RoHS Compliant
- Voltaje en línea: 50 Vdc
- Conectores: N Hembra
- Rango de frecuencia: DC a 7 GHz
- Voltaje de activación: 150 Vdc (spark over)
- Potencia RF: 90W/CW @ 30MHz, 9W/CW @ 3GHz
- VSWR: DC a 3.0GHz @ ≤1.1dB a 1 dc a 4.0Ghz @ ≤1.2bB a 1 dc a 7.0Ghz @ ≤1.4 a 1
- Perdida por inserción: DC a 4.0Ghz @ ≤0.1dB dc a 7.0GHz @ ≤0.25dB
- Protocolo/Aplicación: tube de gas, protección coaxial pasa DC RF para DC a 7.0 GHz
