POLYPHASER

Protector Coaxial RF / 125-1000 MHz / 50 Ω / Conectores N Hembra / Bloqueo DC / 40 kA

Protector Coaxial RF / 125-1000 MHz / 50 Ω / Conectores N Hembra / Bloqueo DC / 40 kA

Precio habitual $ 4,617.57
Precio habitual Precio de oferta $ 4,617.57
Oferta Agotado
Impuesto incluido.

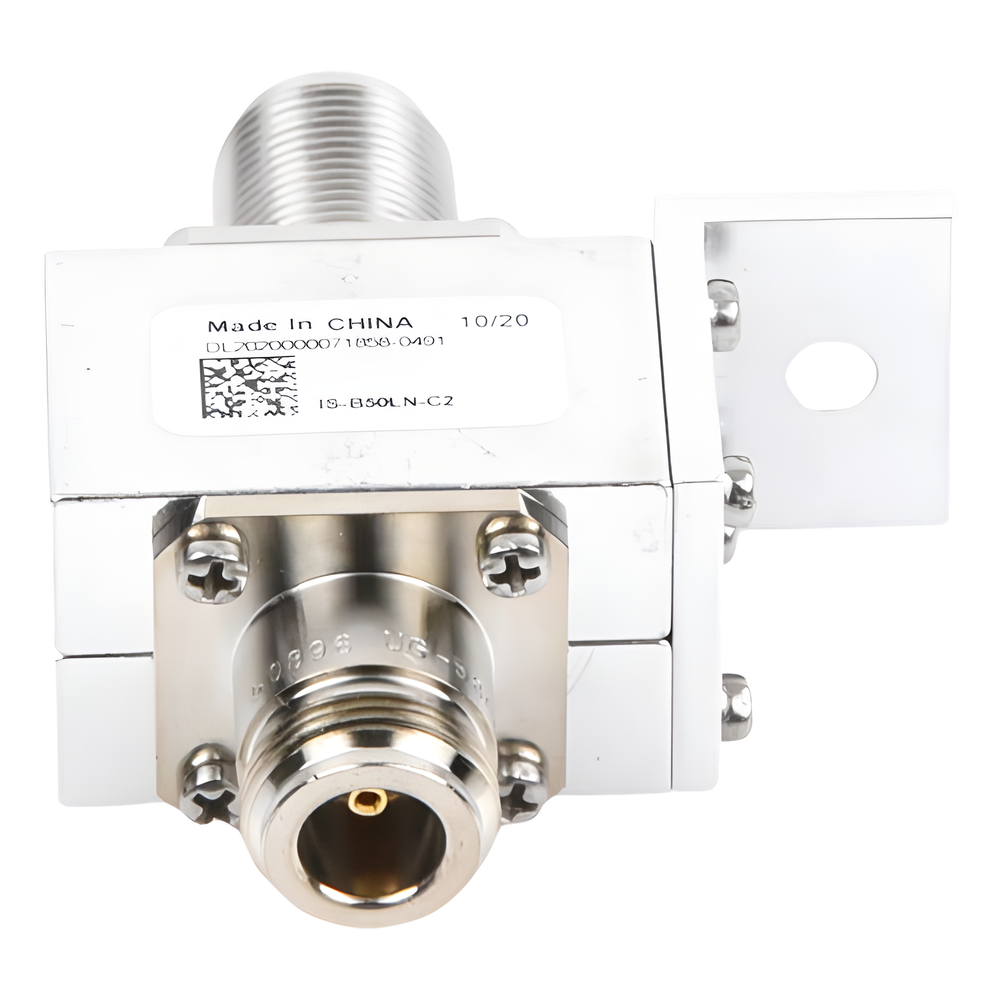

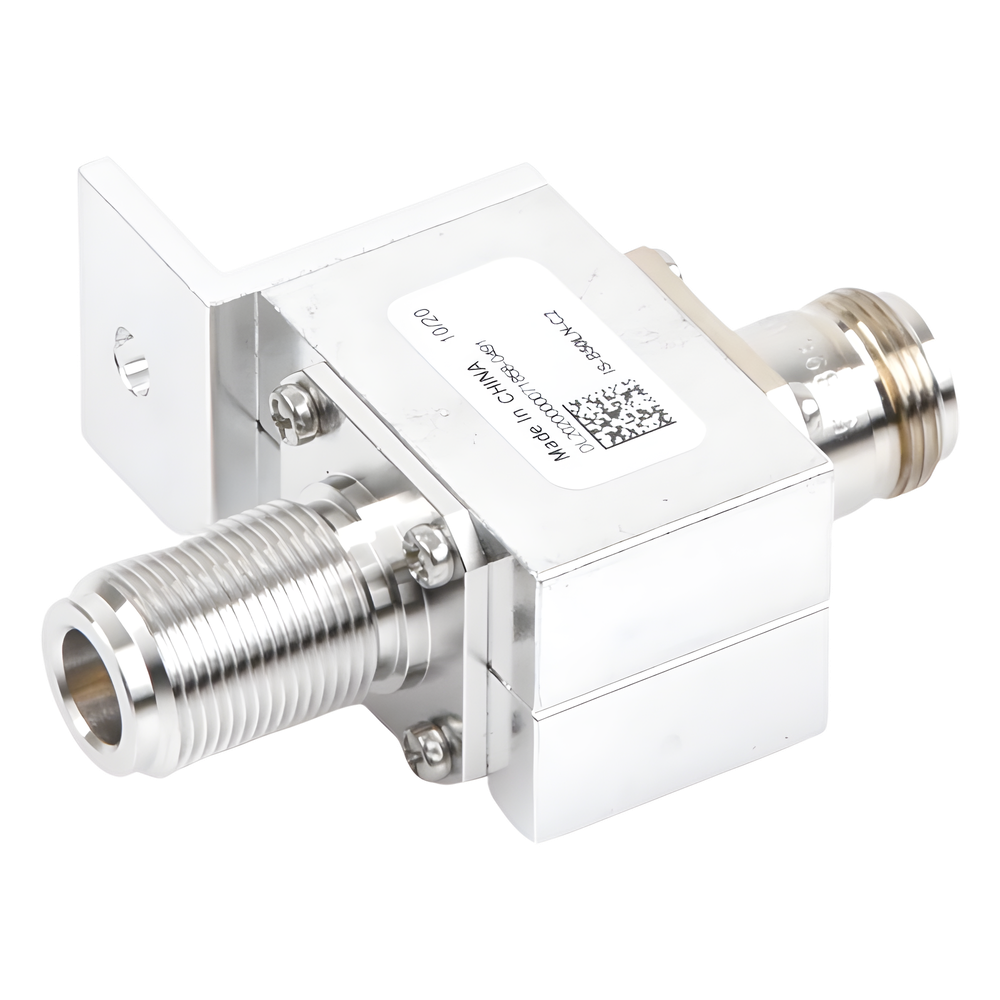

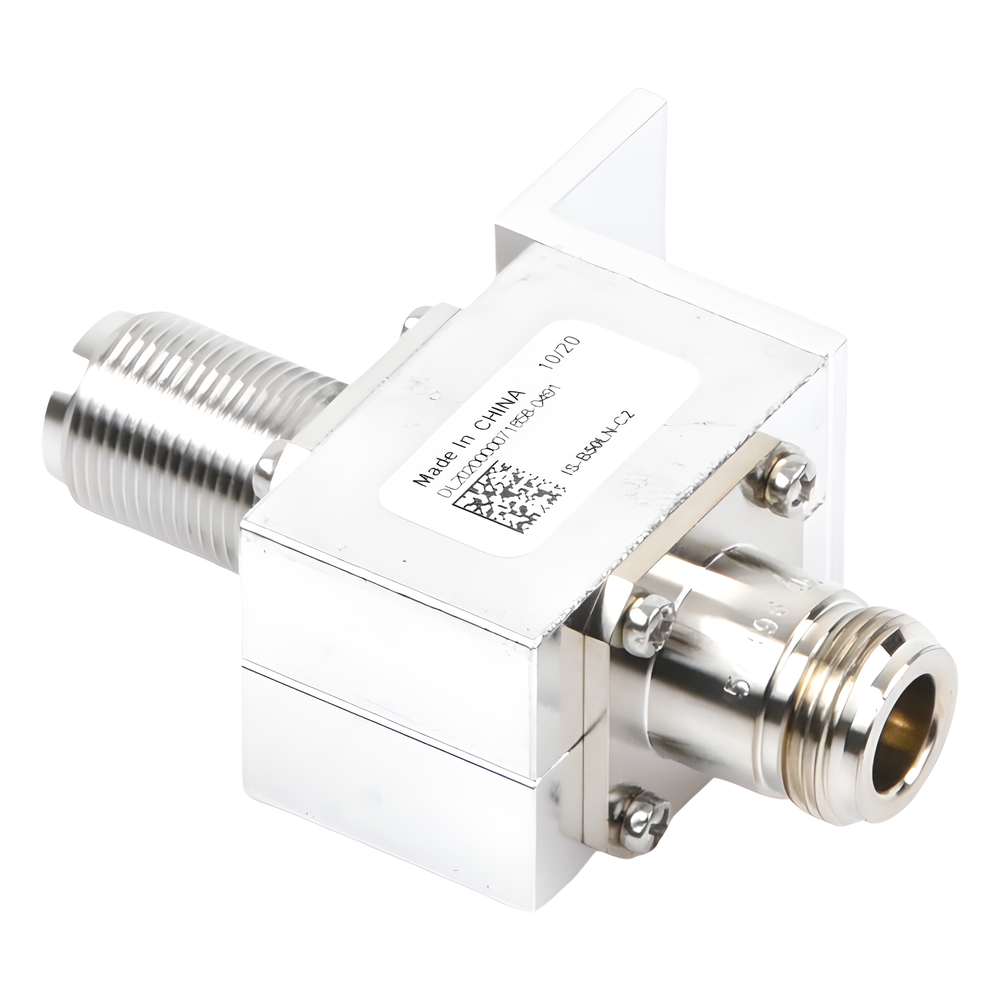

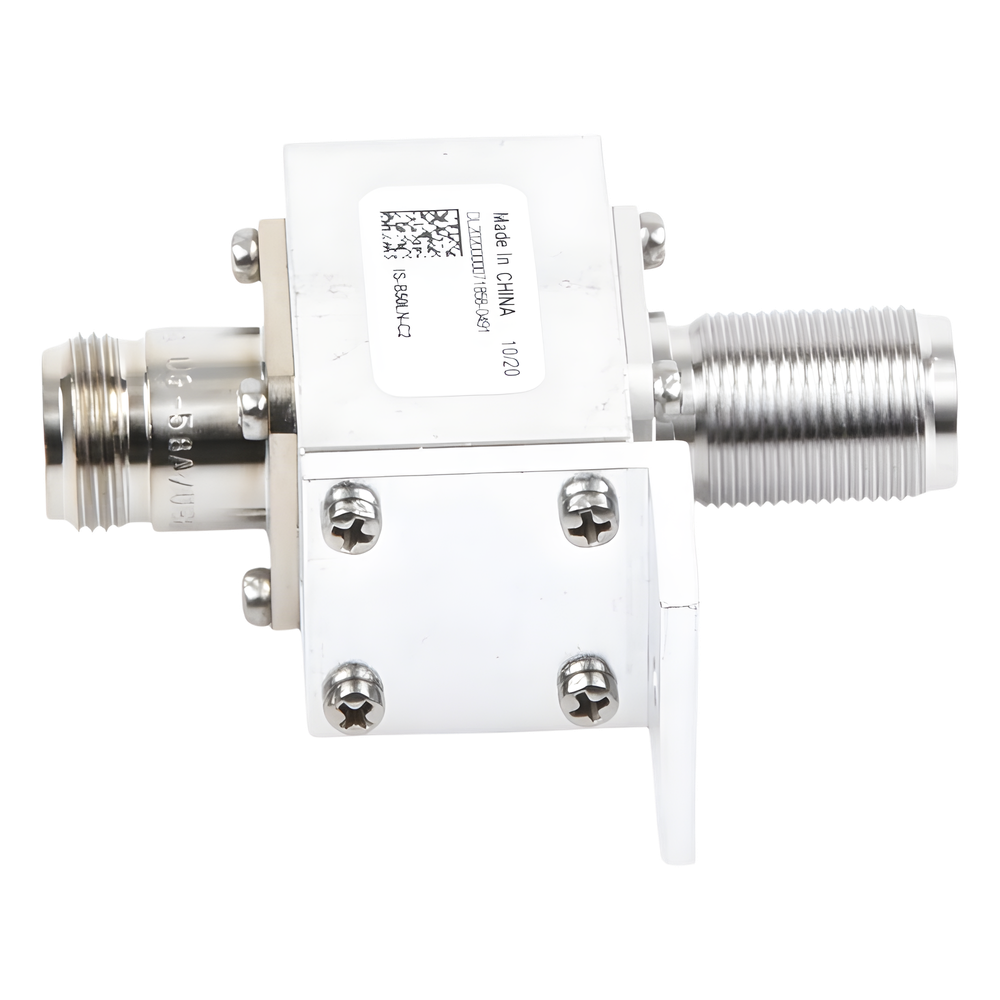

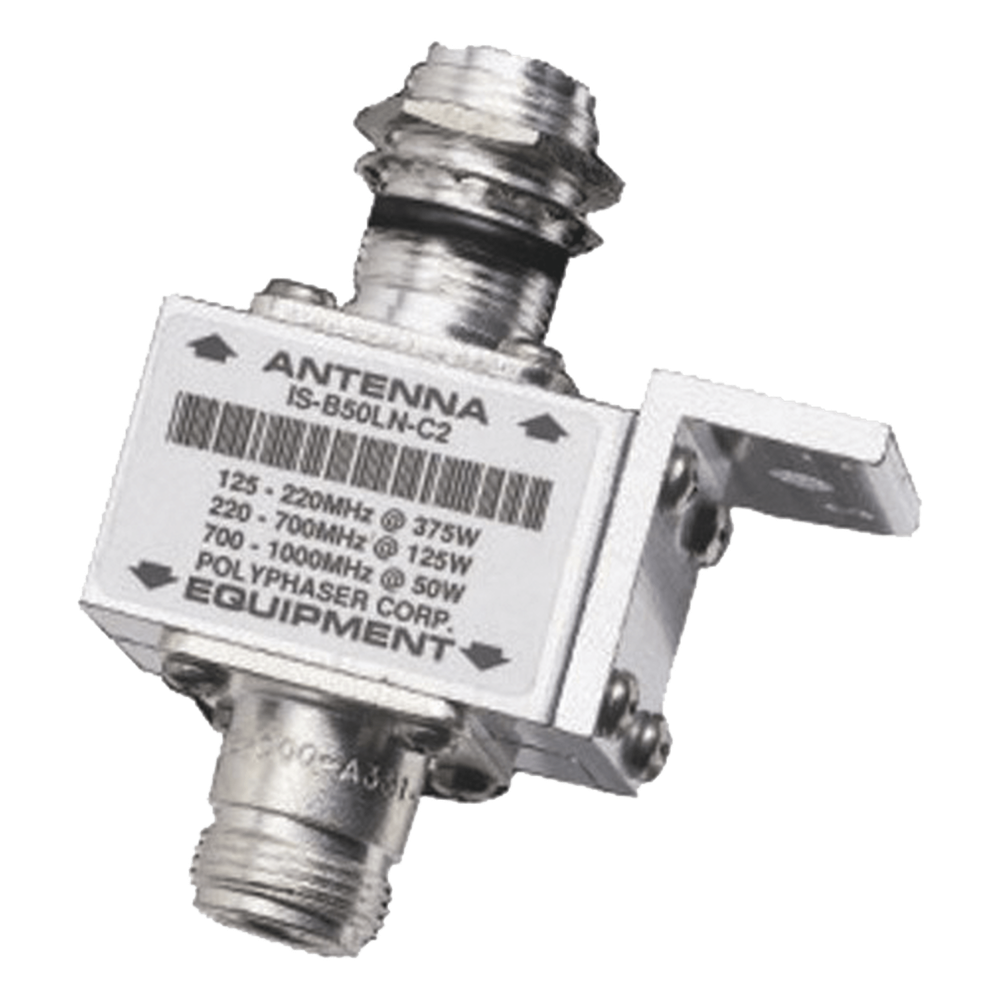

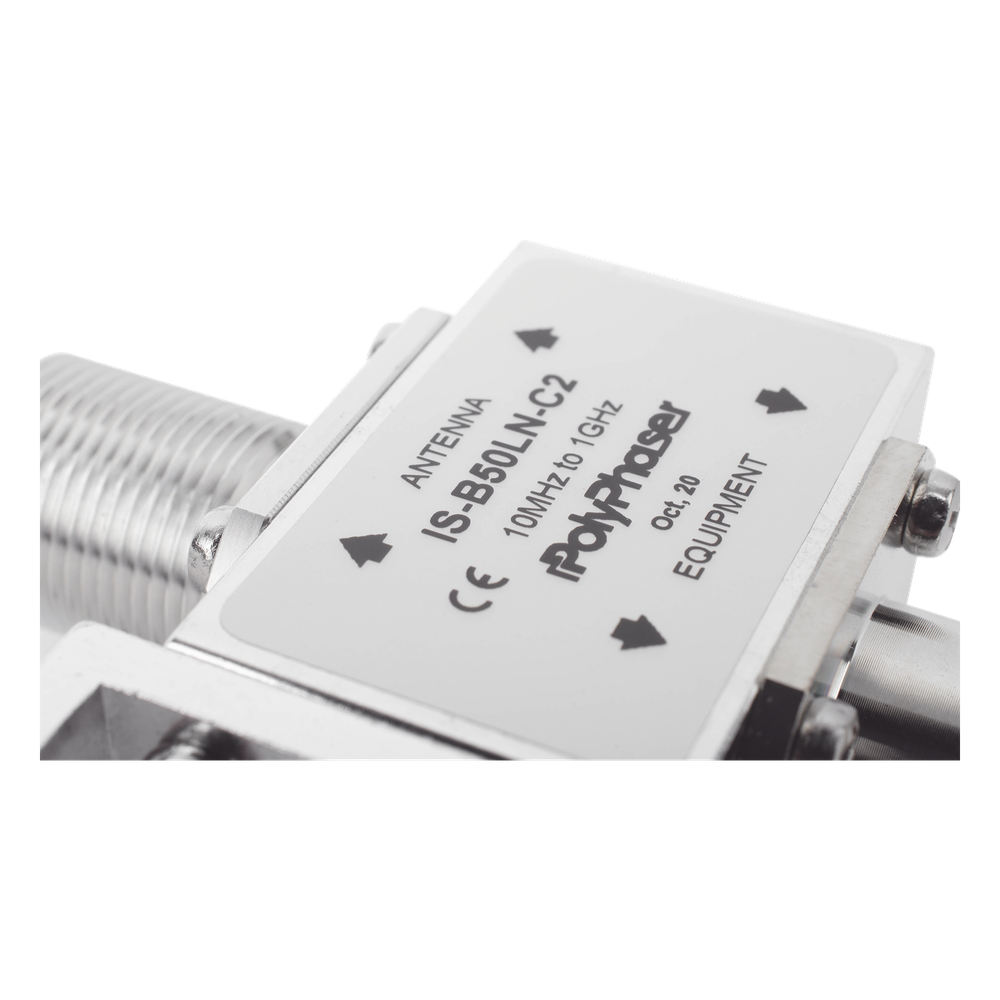

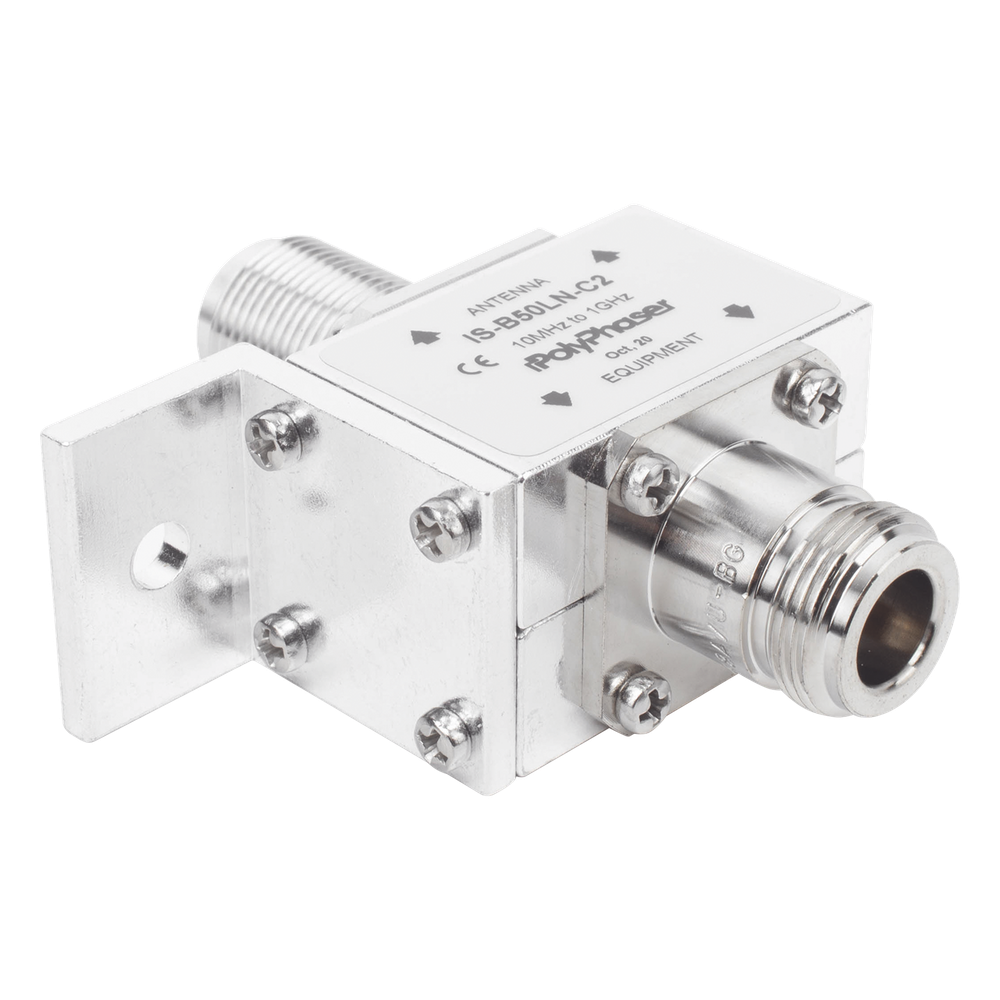

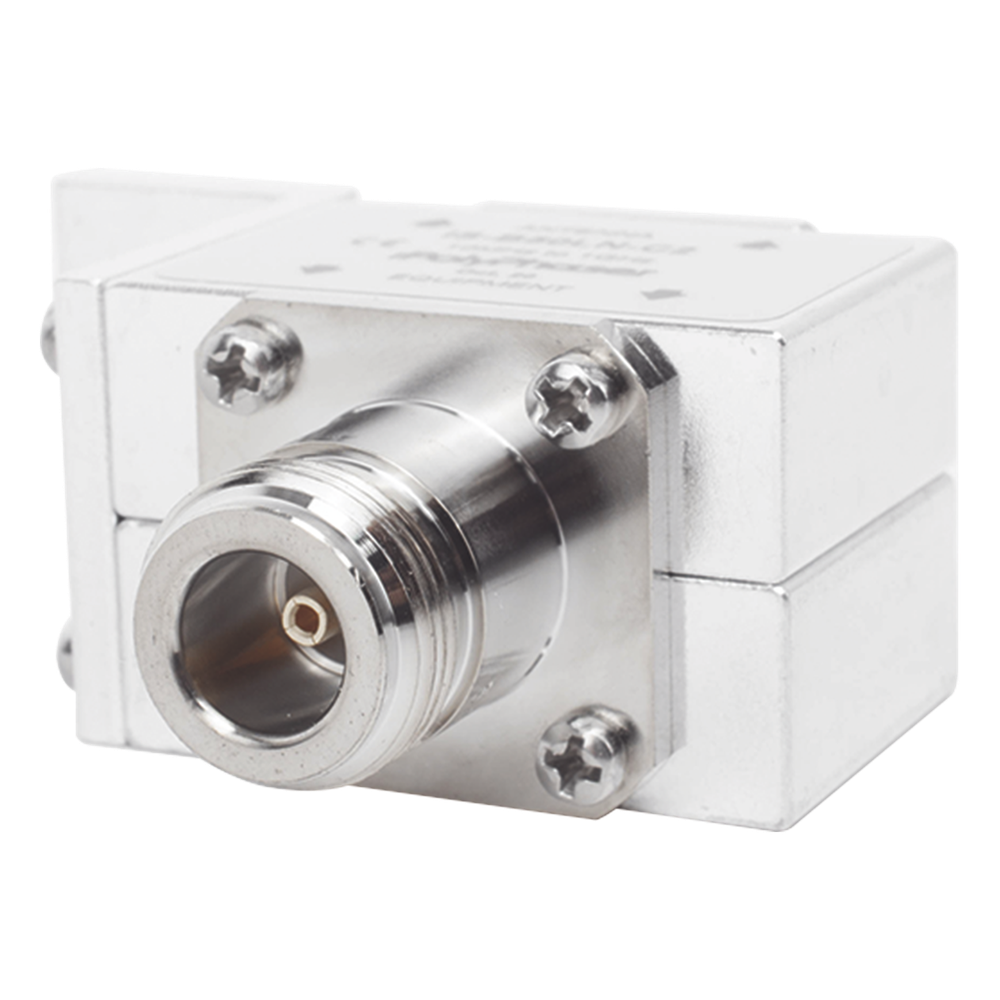

Protector RF Coaxial POLYPHASER ISB50LNC2

Este protector contra sobretensiones de radiofrecuencia / pararrayos ayuda a proteger su equipo de pulsos electromagnéticos (EMP) o sobretensiones que suelen ser causadas por rayos u otros cambios eléctricos fuertes. Se usa comúnmente para instalaciones de radio y antenas donde parte o todo el equipo del sistema está al aire libre para proteger equipos sensibles y está diseñado para pasar de 10 MHz a 1 GHz mientras se suprime la sobretensión de CC.

Características principales:
  • Impedancia: 50 Ω
  • Conector In: N Hembra
  • Conector Out: N Hembra
  • Frecuencia Mínima: 10 MHz
  • Frecuencia Máxima: 1 GHz
  • Dirección: Direccional
  • Potencia de entrada máxima: 1,500 Watts
  • Flujo de energía: 120 uJ
  • Picos de corriente: 20 kA
  • Tecnología: Tubo de gas
Especificaciones:
  • Fácil instalación
  • Capacidad de golpes múltiples de energía
  • Pérdida por inserción: 0.1
  • Dimensión: 2.72 *1*2.25in (L*W*H) 69.09*25.4*57.15 mm
  • Rango de operación: -50ºC a 50ºC
  • Rango de almacenamiento: -55ºC a 85ºC
  • Potencia: 1.5 kW @ 10 a 50 MHz
  • Potencia: 375 W @ 50 a 220 MHz
  • Potencia: 125 W @ 220 a 700 MHz
  • Potencia: 50 W @ 700 a 1000 MHz
Aplicaciones:
  • Radios HF, UHF y VHF
  • Ham Radios
  • Monitoreo industrial remoto
