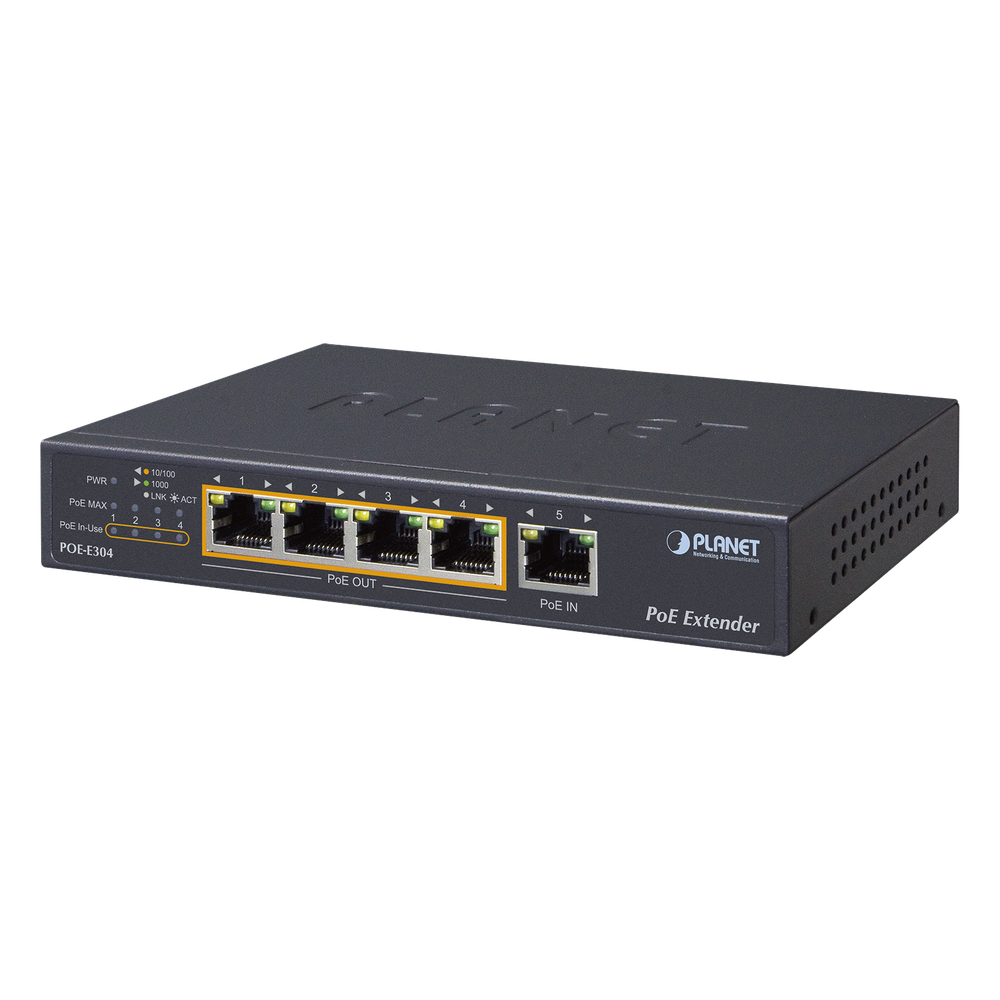

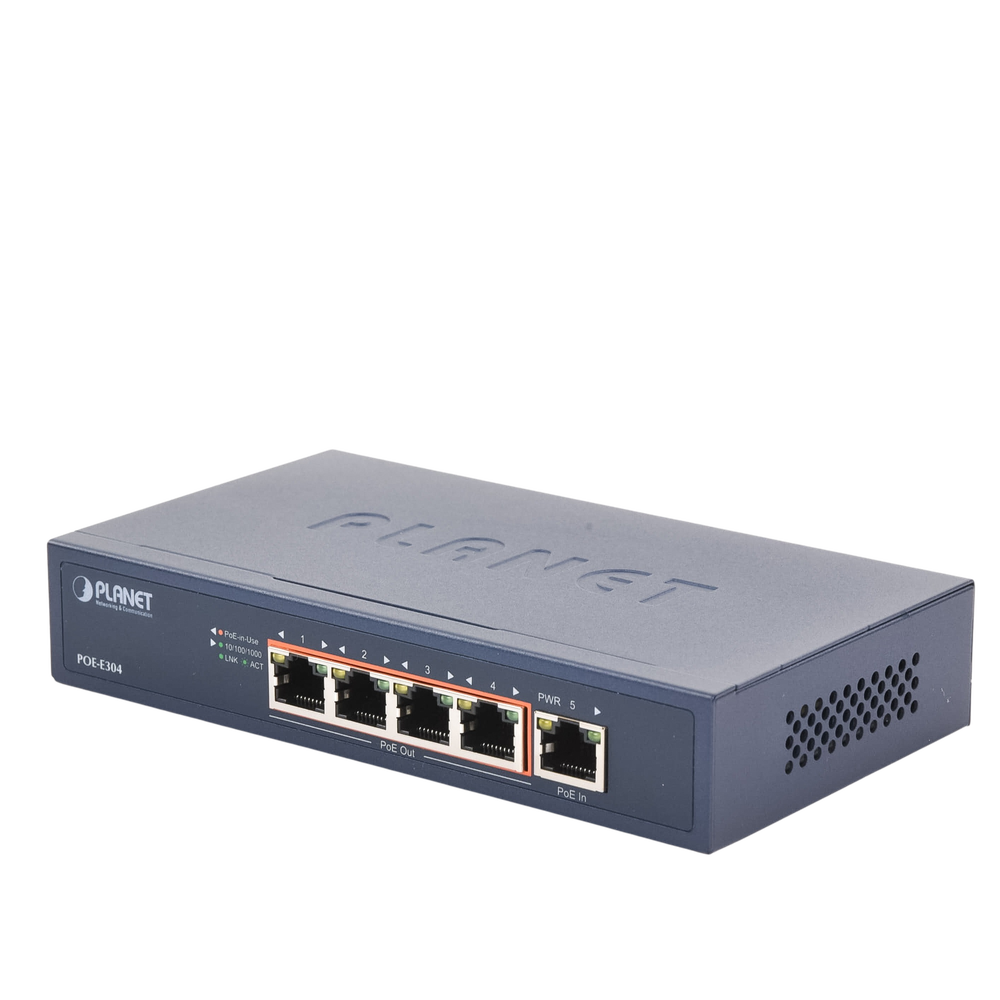

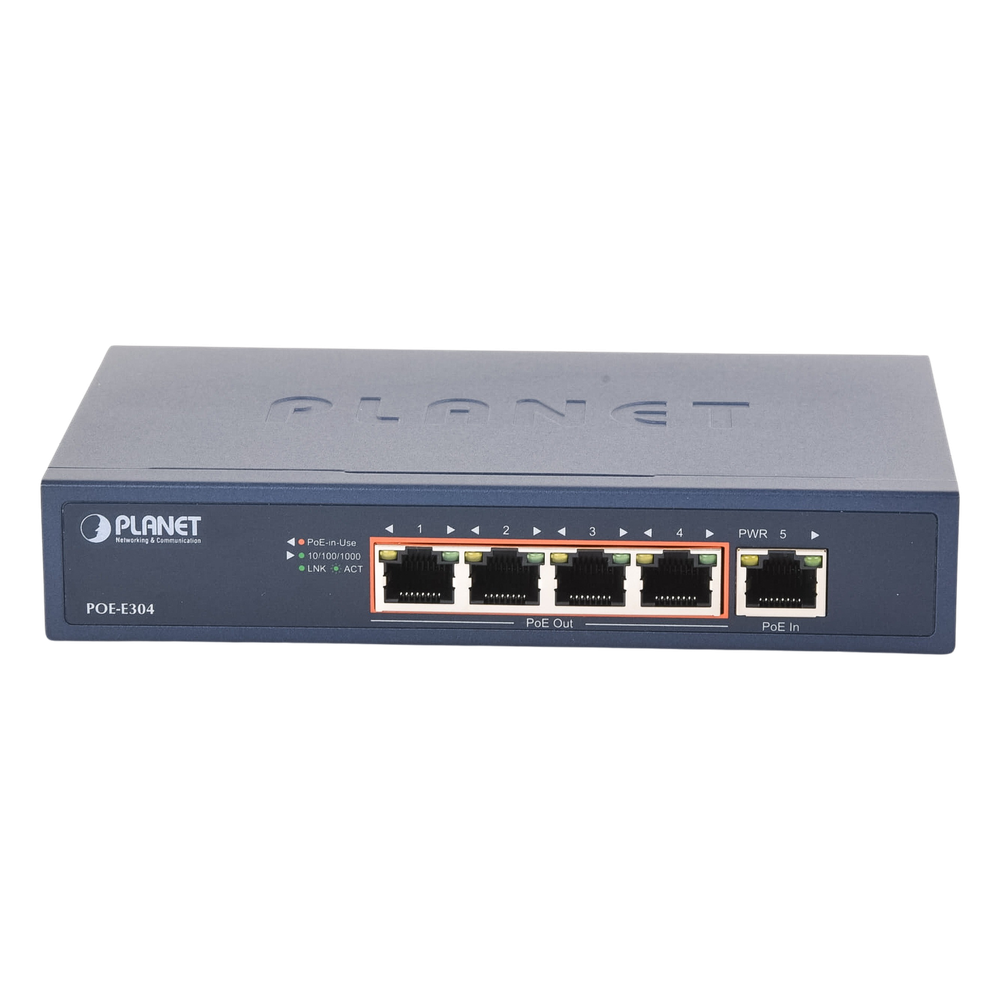

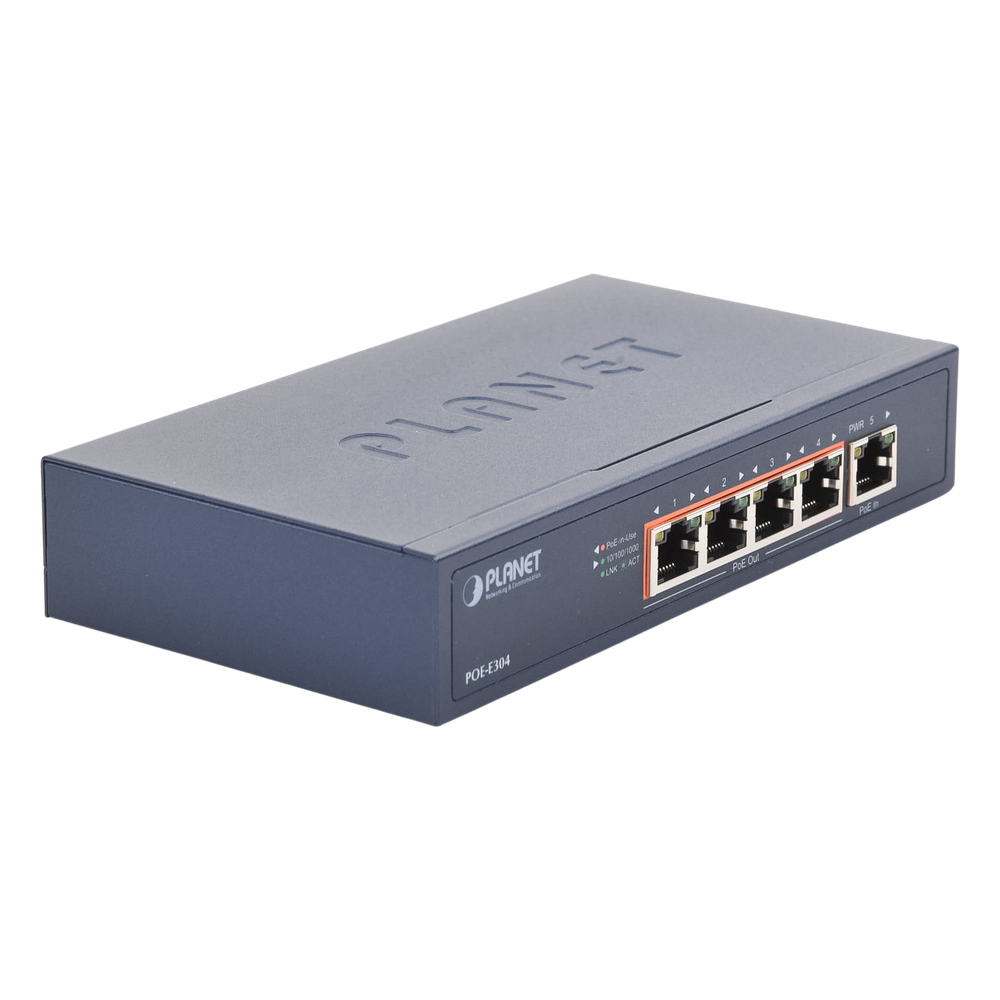

Extensor Ultra PoE de 65 Watts Con 4 Puertos Gigabit de Salida 802.3 af/at

Extensor Ultra PoE de 65 Watts Con 4 Puertos Gigabit de Salida 802.3 af/at

$ 2,880.54
$ 2,880.54
Oferta Agotado
Impuesto incluido.

Instalación Plug and Play

El POE-E304 Se utiliza entre el equipo de alimentación (PSE) y un dispositivo alimentado (PD) ofreciendo una solución rentable y rápida para duplicar el rango estándar de PoE de 100 a 200 metros.

Especificaciones Fisicas
  • Puertos de Red: 1 x 10/100/1000BASE-T Ethernet with Ultra PoE 'Data + DC' in, auto MDI/MDI-X, auto-negotiation RJ45 connector. 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE 'Data + DC' out, auto MDI/MDI-X, auto-negotiation RJ45 connector
  • Negociación: 10/100/1000Mbps
  • Switch: Store-and-Forward
  • Tabla MAC Address: 2K
  • Data Buffer: 2Mbits
  • Switch Fabric: 10Gbps
  • Switch Throughput: 7.44Mpps @ 64 bytes
  • Jumbo Frame: 9K
  • Flow Control: IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
  • LED Indicators: PoE In Port: 10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green). PoE Out Port 1 to Port 4: 10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green), PoE-in-Use (Orange), PoE Max. (Orange)
  • Protección: ESD (Ethernet): 6KV, Surge (EFT for power): 2KV
  • Enclosure: Metal
  • Instalación: Desktop/Wall mountable
  • Dimensiones (W x D x H): 160 x 92.5 x 28 mm
  • Peso: 370g
  • Requerimientos Energeticos: PoE In: IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50V-56V DC. External DC: 50~56V DC
  • Consumo Energetico: 4 watts/13.7BTU (System on with PoE input), 6 watts/20.6BTU (Ethernet full loading without PoE function), 60 watts/205.9BTU (Full loading with PoE function)
  • Cableado: 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft), 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft), 1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft), EIA/TIA-568 100-ohm STP (100m, 328ft)
Power over Ethernet
  • PoE: PoE In Port: Ultra Power over Ethernet end-span/mid-span PD class 4 PD. Per PoE Out Port: IEEE 802.3at Power over Ethernet Plus end-span PSE, IEEE 802.3af Power over Ethernet end-span PSE
  • Alimentación PoE: PoE In Port: 50~56V DC, max. 60 watts. Per PoE Out Port: 44~55V DC, max. 30.8 watts. No incluye Fuente de voltaje
  • Configuración de Pines: PoE In Port: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2(-), 3/6(+); 4/5(+), 7/8(-). Per PoE Out Port: 1/2 (+), 3/6 (-), end-span (Type A)
  • Presupuesto de Alimentación PoE: 50 watts (max.) @ Ultra PoE input, 20 watts (max.) @ IEEE 802.3at PoE+ input
Standard Conformance
  • Regulatory Compliance: FCC Part 15 Class A, CE
  • Standard Compliance: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3x Flow Control
Environment
  • Operación: Temperature: 0 ~ 50 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
  • Almacenamiento: Temperature: -10 ~ 70 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
