LINKEDPRO BY EPCOM

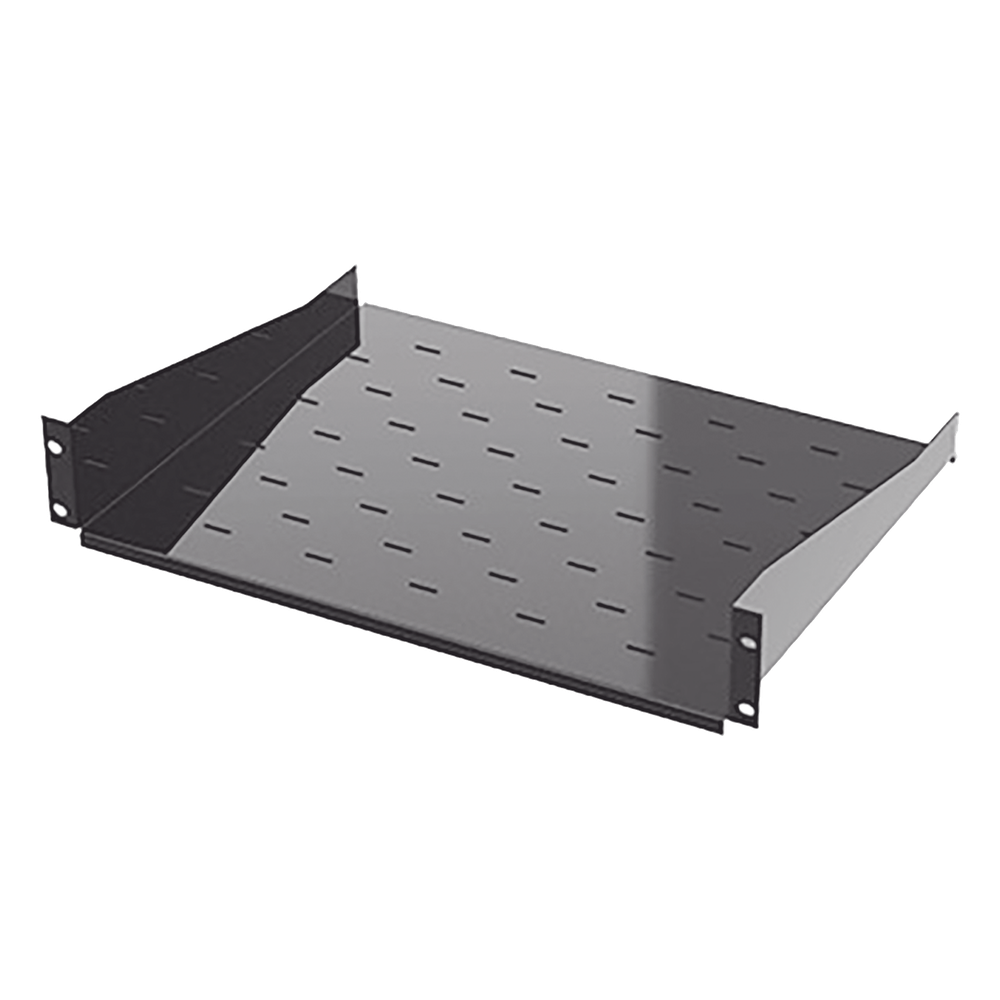

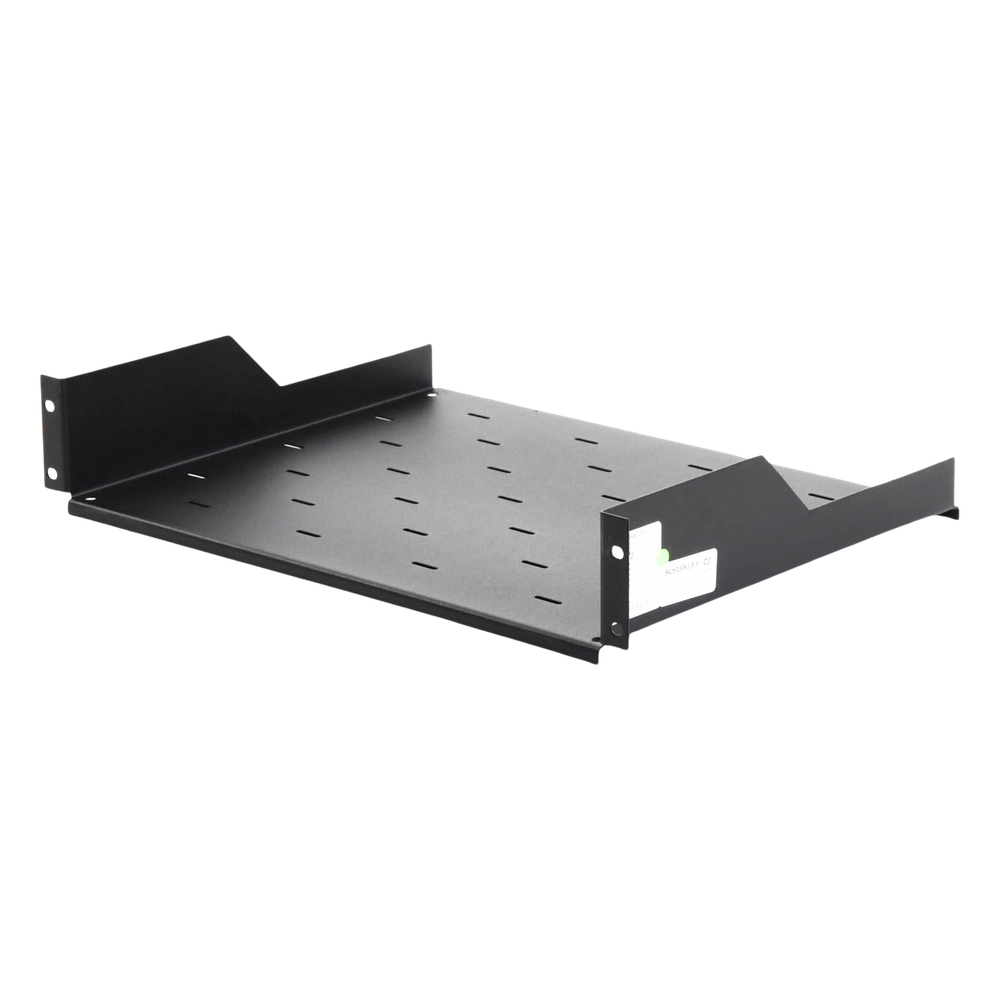

Charola para Rack de 19", 34 cm de Profundidad, 2UR

Charola para Rack de 19", 34 cm de Profundidad, 2UR

Precio habitual $ 1,221.43
Precio habitual Precio de oferta $ 1,221.43
Oferta Agotado
Impuesto incluido.

Características Principales

  • Calibre de lámina 16 para alta durabilidad
  • Color negro discreto para aplicación interior
  • Capacidad de carga máxima sugerida: 20 kg
  • Diseño compacto con 342 mm de profundidad
  • Compatible con racks de 2 unidades
Especificaciones Técnicas
  • Calibre de lámina: 16
  • Color: Negro
  • Aplicación: Interior
  • Unidades Rack: 2
  • Profundidad: 342 mm
  • Carga Sugerida Máx: 20 Kg
Propiedades del Material
  • Material: SAE 1008
  • Límite elástico: 5.254e+08 N/m²
  • Módulo elástico: 2.8344e+11 N/m²
  • Coeficiente de Poisson: 0.29
  • Densidad: 7872 kg/m³
Resultados del Estudio
  • Tensión de von Mises: 6.707e+04 a 3.502e+08 N/m²
  • Desplazamientos resultantes: 0.000e+00 a 7.595e+00 mm
  • Deformación unitaria: 5.617e-08 a 9.385e-04

Observaciones

  • Fuerza de reacción: 196.132 N
  • Momento de reacción: 0.00311638 N.m
  • Factor de seguridad: 1.5 (basado en el análisis de tensión máxima)

Logo de LINKEDPRO
Charola para Rack SCH19X13.5

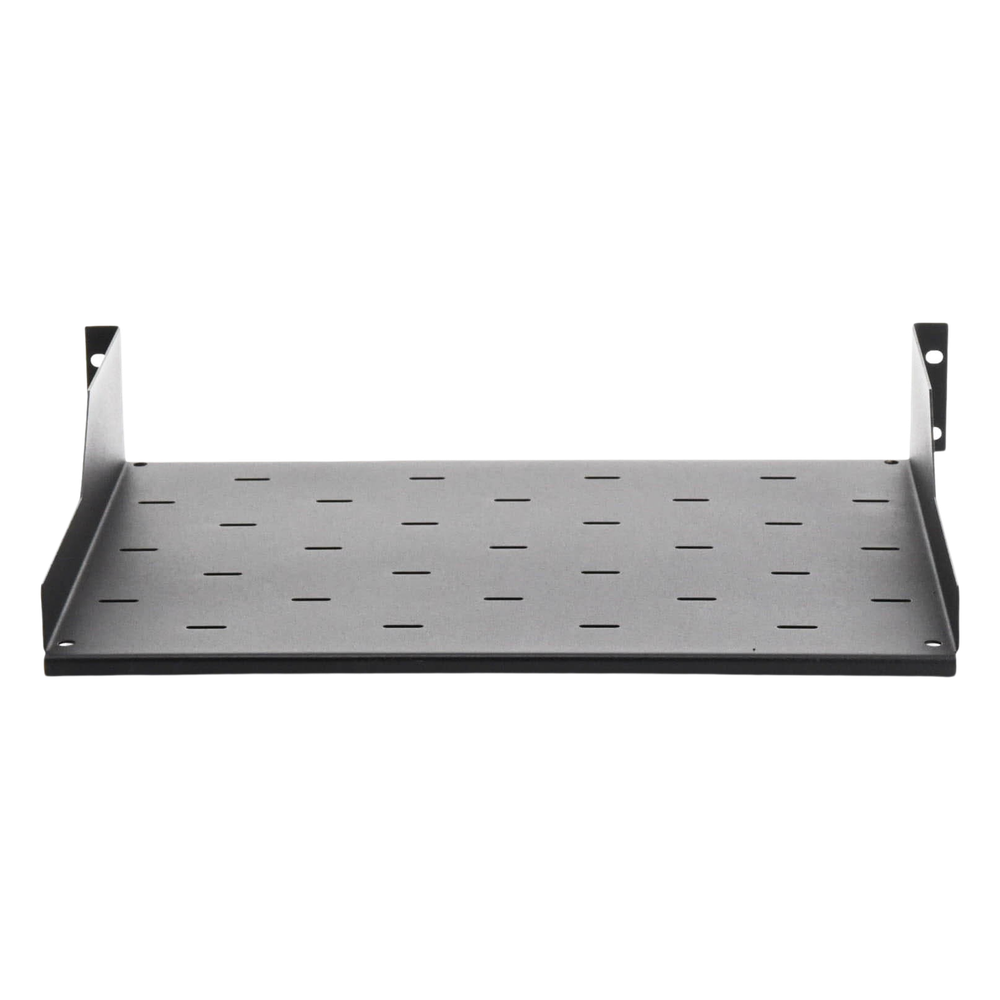

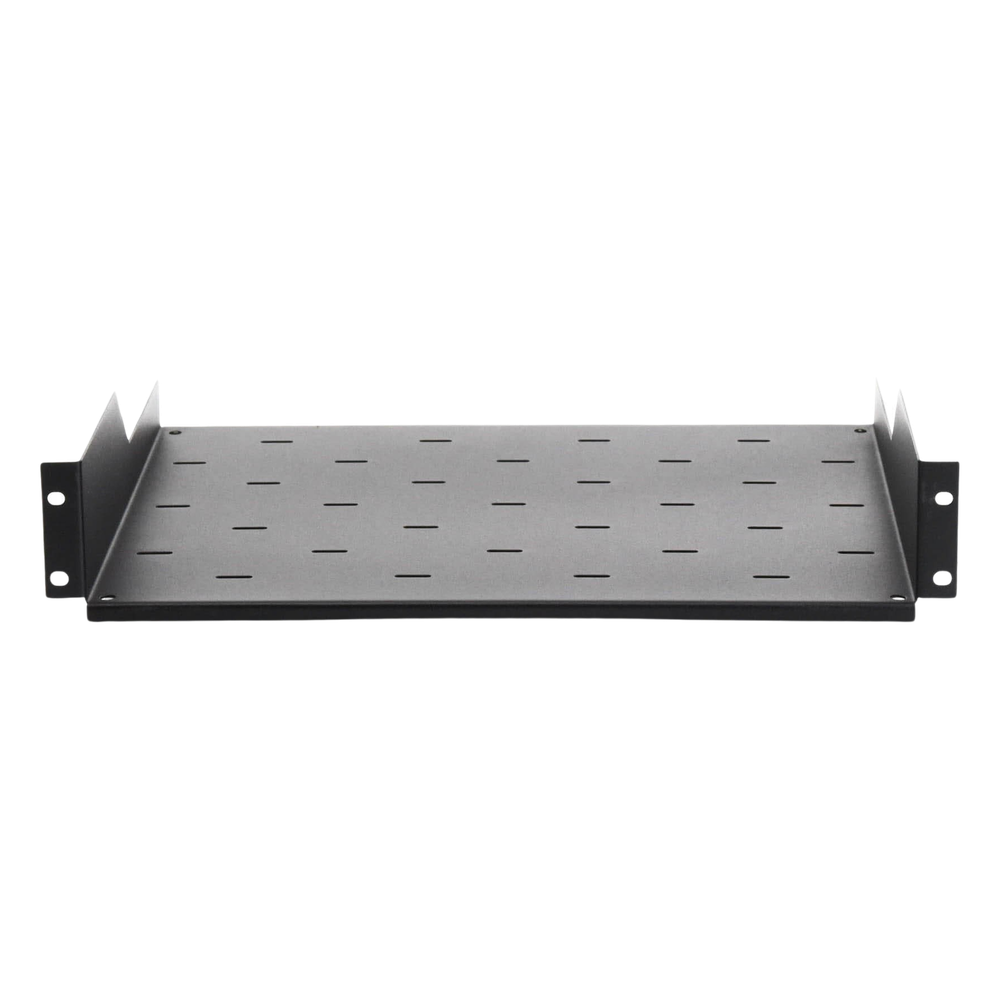

Vista detallada de la charola

*Los colores de los productos pueden cambiar para mejoras técnicas.

*El peso declarado es de los equipos sin accesorios y sin embalaje.
