POLYPHASER

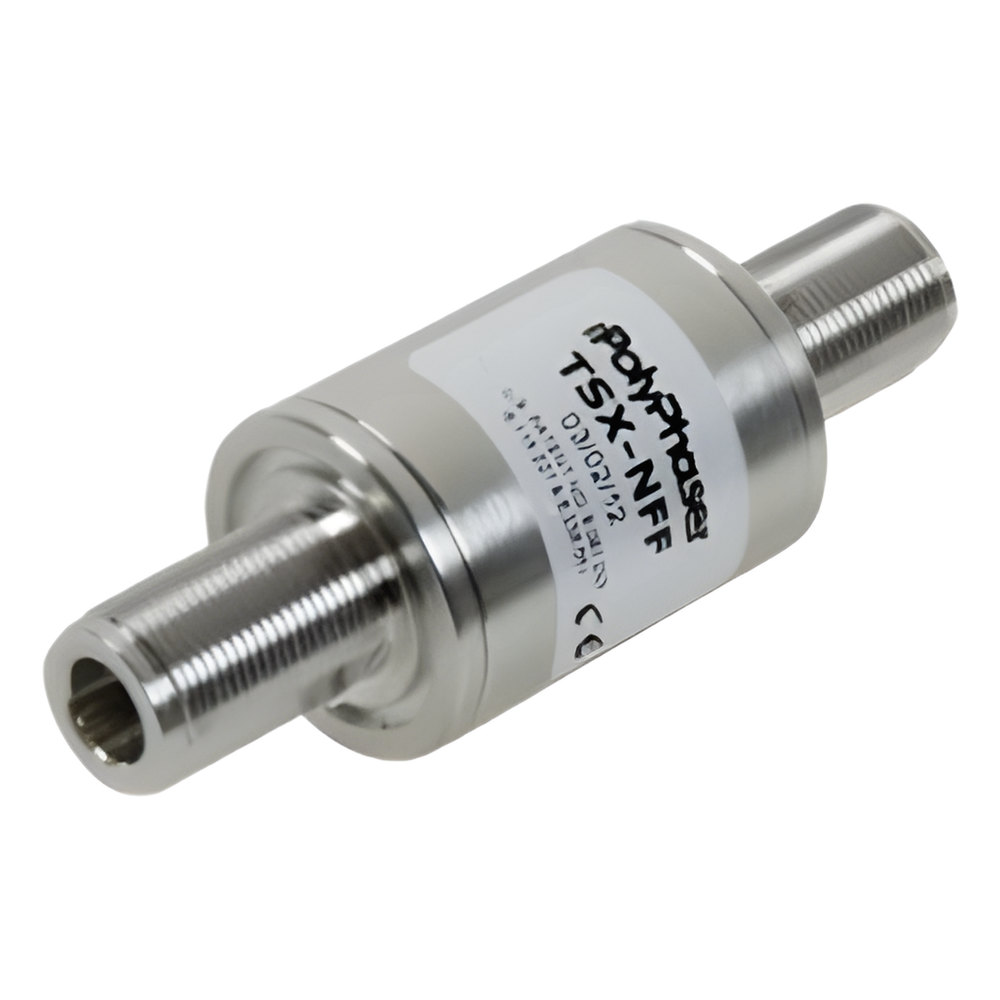

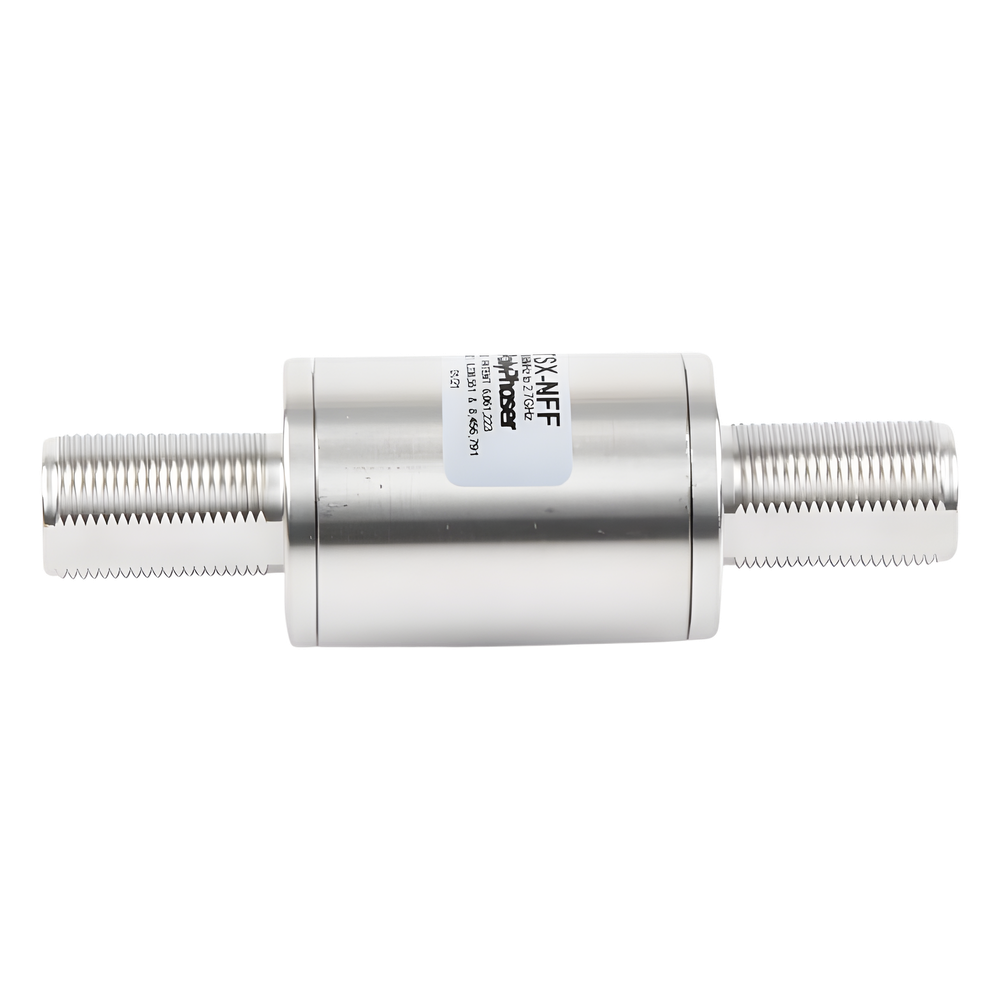

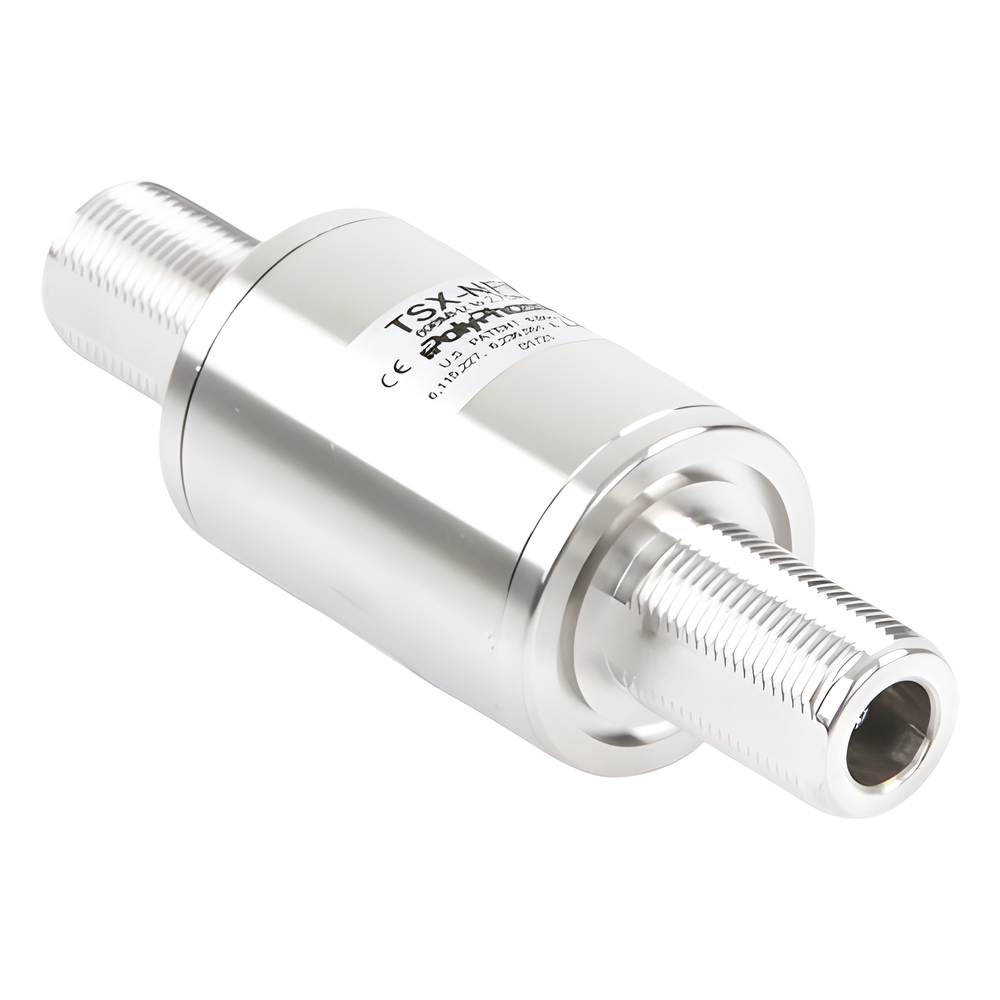

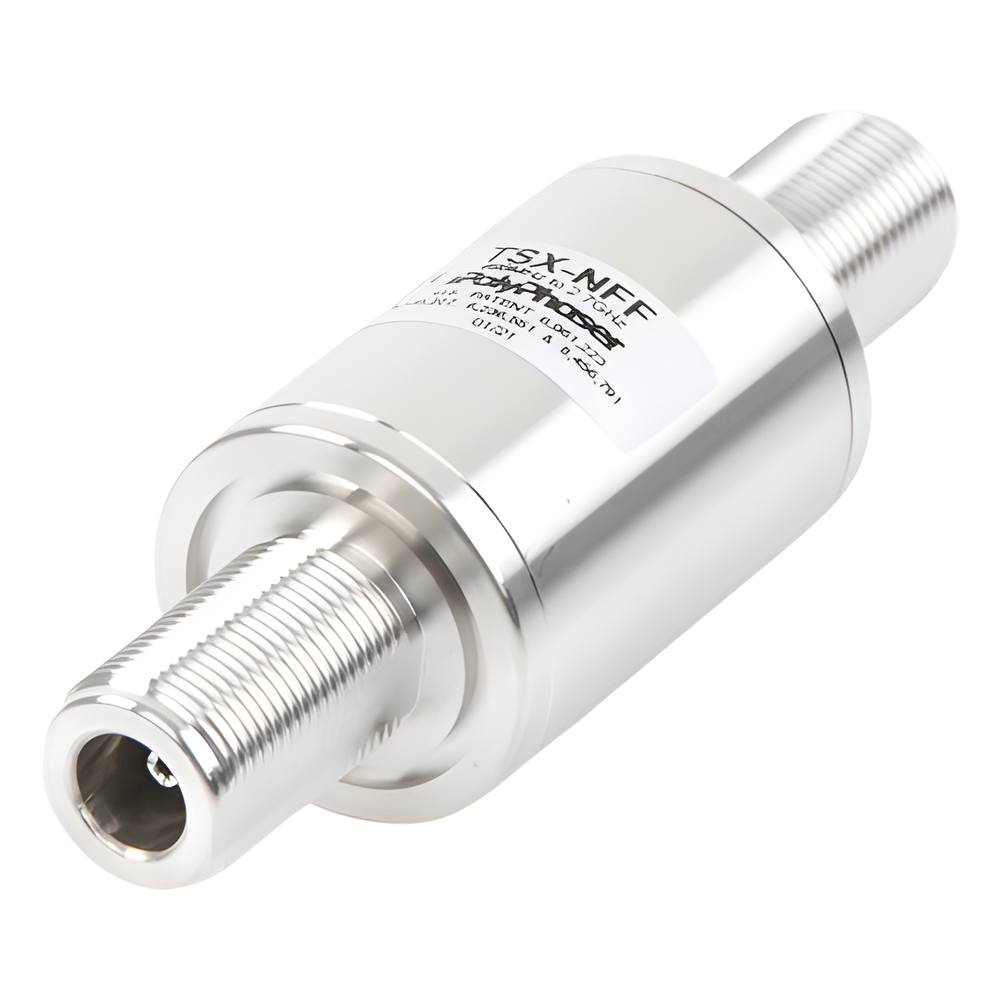

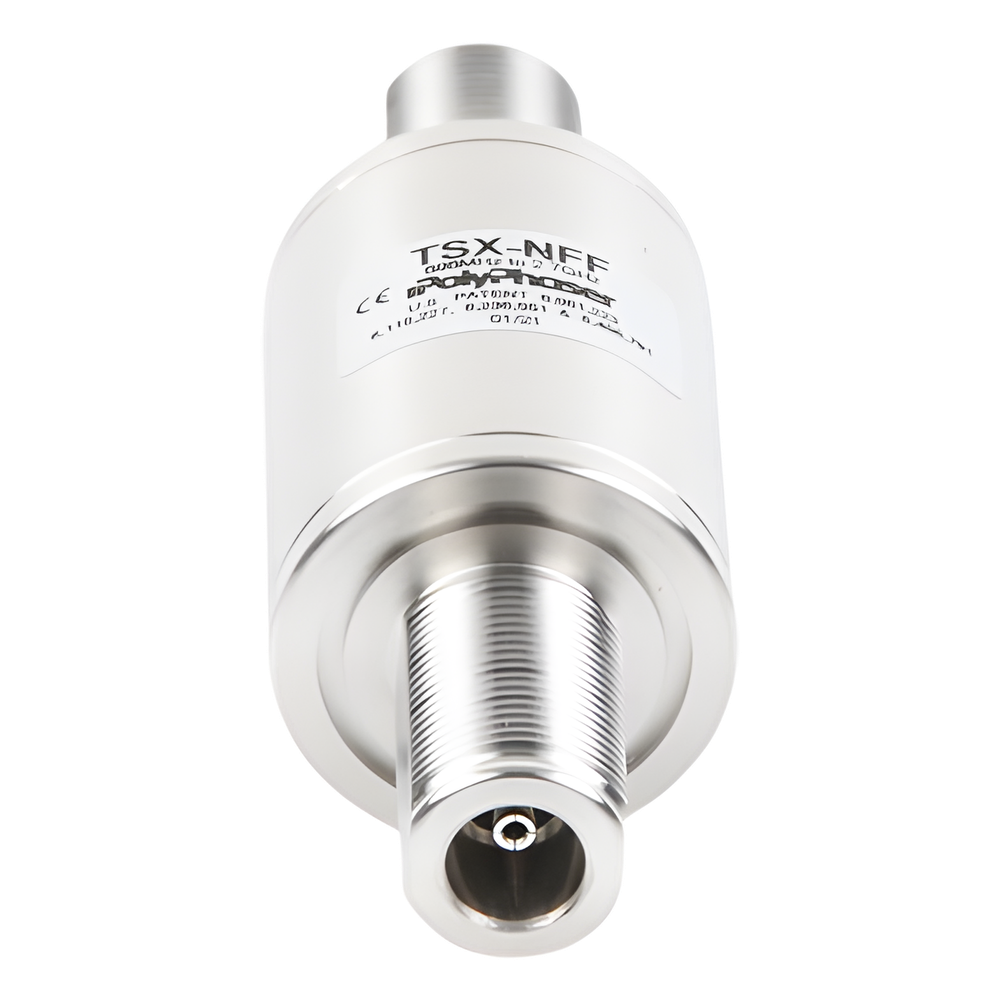

Protector Coaxial RF Bidireccional / 698-2700 MHz / 750W / Conectores N Hembra / Bloqueo DC / IP67

Protector Coaxial RF Bidireccional / 698-2700 MHz / 750W / Conectores N Hembra / Bloqueo DC / IP67

Precio habitual $ 7,163.30
Precio habitual Precio de oferta $ 7,163.30
Oferta Agotado
Impuesto incluido.

Características Principales

  • Rango de frecuencia de 698-2700 MHz
  • Potencia máxima soportada de 750 W
  • Pérdida por inserción de solo 0.2 dB
  • Protección bidireccional con flujo de energía 0.5 µJ
  • Conectores estándar tipo N hembra
Especificaciones Eléctricas
  • Rango de Frecuencia: 698-2700 MHz
  • Pérdida por Inserción: ≤0.1 dB
  • Potencia Máxima: 750 W
  • Voltaje de paso: ≤±200mV para 3kA @ 8/20µs
  • Energía de paso: ≤5nJ para 3kA @ 8/20µs
  • Corriente Máxima: 40kA
  • Corriente Múltiple: 20kA
Características Físicas
  • Conectores: N Hembra
  • Material: Cuerpo de bronce triplateado
  • Dieléctrico: PTFE
  • Temperatura de Operación: -50°C a +85°C
  • Protección: IP67
  • Resistencia a vibración: 1G @ 5Hz a 100Hz
Aplicaciones
  • Protección DC corto/Radiofrecuencia
  • Montaje en chasis
  • A prueba de intemperie cuando está instalado
  • Cumple con IEC 60529 IP67
  • Cumple con Bellcore #TA-NWT-000487
  • Conforme a RoHS
  • CE Compliant

Información Adicional

  • Dimensiones: 1.18' (30 mm) x 2.0' (50.8 mm)
  • Peso: 0.25 lbs (113 g)
  • Estándares: IEC 61000-4-5 8/20µs
  • Normativas: Exportadas de acuerdo a regulaciones de Estados Unidos
